Acoustifoam™ Ceiling Baffles are available in flat, sinuous, double ‘S’, and cylindrical options – all designed to be easily hung from the ceiling or ceiling support structure. Available in standard lengths (up to 8’), the Ceiling Baffles allow for an acoustic multiplier effect, being that when the baffles are hung, their overall absorption is the sum of the absorption on all sides of the material (including what would typically be the back of the panel if hung on a wall). Available in natural white or via ‘PCC’ (Pantone Custom Coloring).
Features
- Class “A” for fire (without used fire-retardant additives)
- Lightweight and easy to hang/install (using thin cables)
- Allows for ‘multiplier’ effect (absorption is exacerbated as it occurs on all 6 sides)
- Suitable even in high humidity environments (like pools, hot yoga studios, etc.)
- Easily ‘pantone’ colored and can be printed on

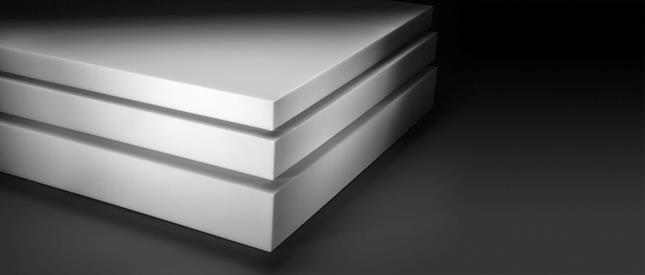

FLAT EDGE
8 in x 8 ft or 12 in x 8 ft
Sinuous
8 in x 8 ft or 12 in x 8 ft

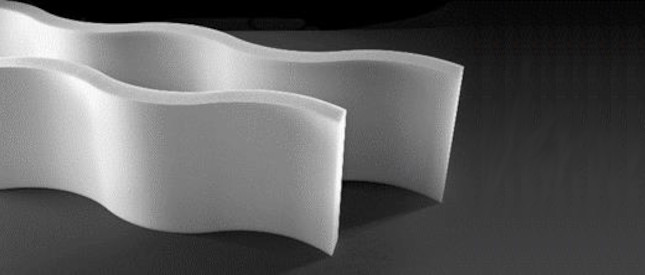

Double S
12 in x 4 ft or 18 in x 4 ft
Drop Cylinder
6 in Diamenter x (2 ft, 3 ft or 4 ft) Length
Standard Thicknesses
- Flat, Sinuous, Tight-weave – 2” or 3”
* thickness often driven by ‘on-center’ hanging position (distance between mounts) - Drop – 6” diameter
* customizable between 4” to 18”
Installation
Hanging with cable
Fire-Resistance
Class “A” (ASTM E84)
Product Documentation
- Data Sheet
(Flat Edge | Sinuous | Double ‘S’ | Cylindrical) - CSI Specification
- Installation Instructions (Flat Edge | Cylindrical)
- Material Safety Data Sheet (MSDS)
Sound Absorption Coefficient [Sabins / sqft ]
| Finish | Thickness (in) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.00 | 0.11 | 0.16 | 0.53 | 0.85 | 0.99 | 1.04 | 0.63 | 0.65 | A |
| 1.50 | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A | |
| 2.00 | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00 | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| 4.00 | 0.58 | 1.19 | 1.45 | 1.38 | 1.29 | 1.24 | 1.34 | 1.35 | A |
| Finish | White | ||||
| Thickness (in) | 1.50 | 2.00 | 3.00 | 4.00 | 5.00 |
| 125 Hz | 0.17 | 0.23 | 0.45 | 0.45 | 0.58 |
| 250 Hz | 0.28 | 0.48 | 0.87 | 0.87 | 1.19 |
| 500 Hz | 0.84 | 1.08 | 1.26 | 1.26 | 1.45 |
| 1000 Hz | 0.99 | 1.19 | 1.07 | 1.07 | 1.38 |
| 2000 Hz | 1.03 | 1.16 | 1.06 | 1.06 | 1.29 |
| 4000 Hz | 1.04 | 1.11 | 1.10 | 1.10 | 1.24 |
| SAA | 0.78 | 0.97 | 1.05 | 1.05 | 1.34 |
| NRC | 0.80 | 1.00 | 1.05 | 1.05 | 1.35 |
| Mounting Type | A | A | A | A | A |
Click image to view Acoustifoam Ceiling BAFFLES pages on brochure.

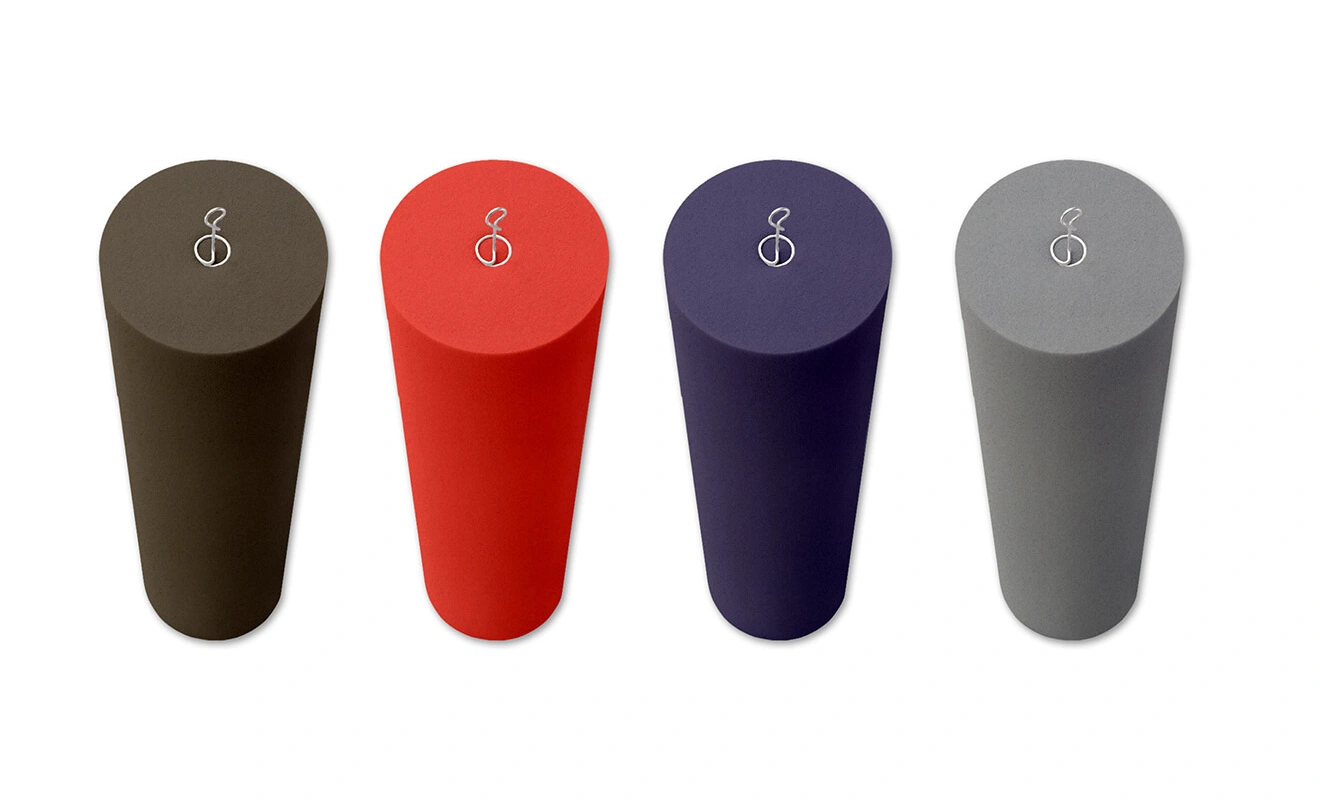

Standard Colors
We offer 10 standard colors to choose from.
Ready to Order?
Lead time and shipping costs vary by product. If you are ready to place an order, CLICK HERE to get a quote for your Acoustifoam CEILING BAFFLES project.

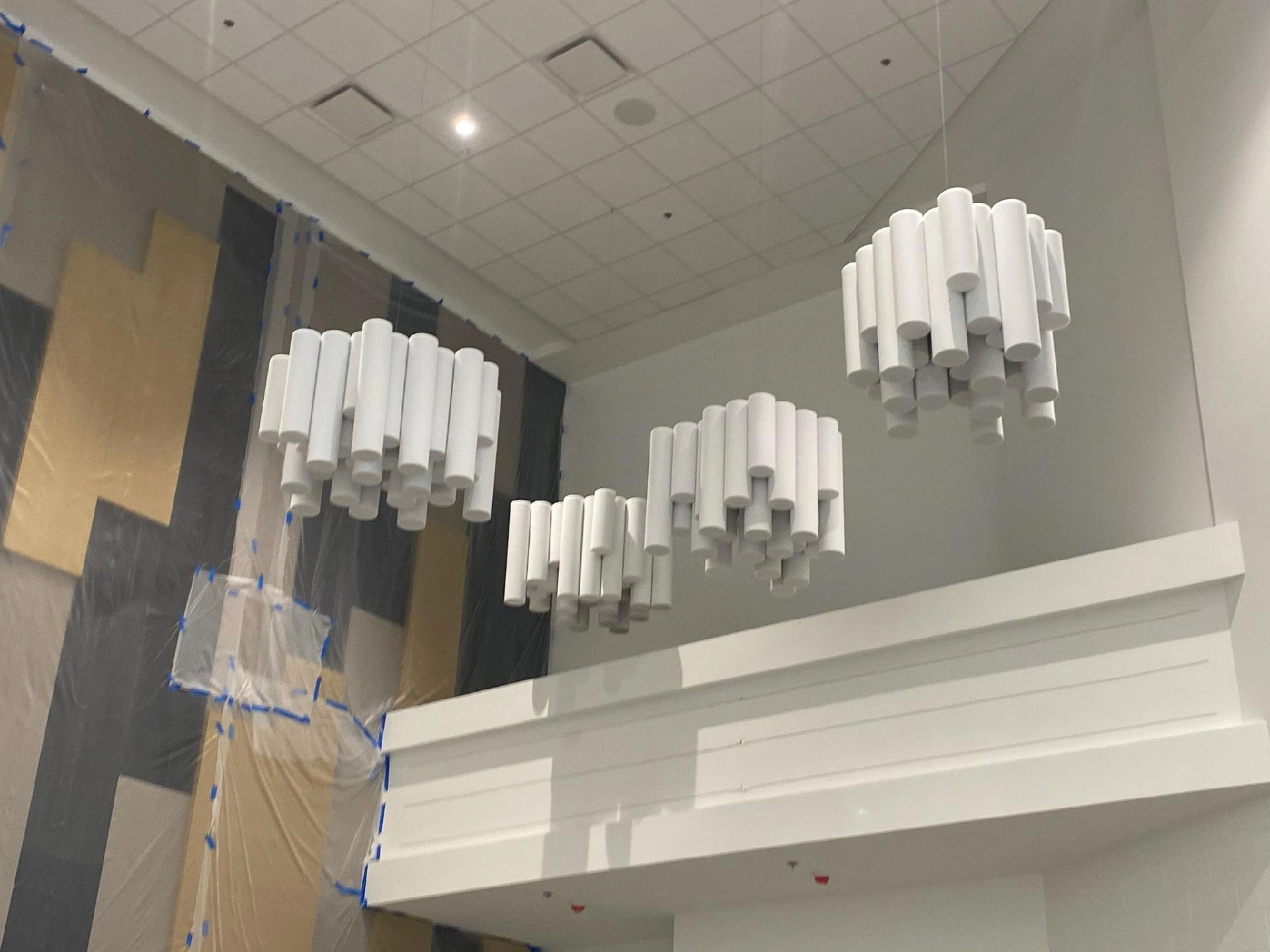

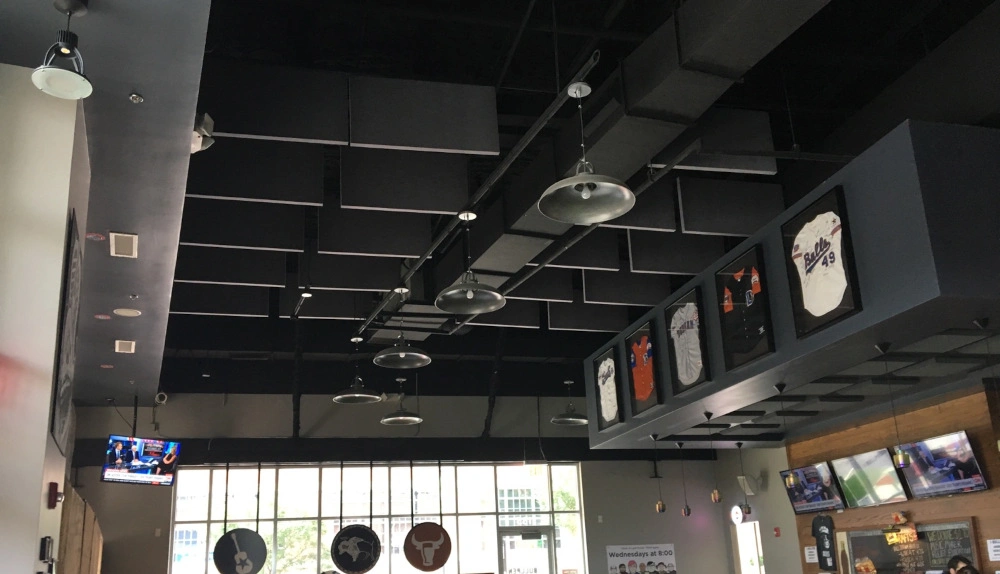

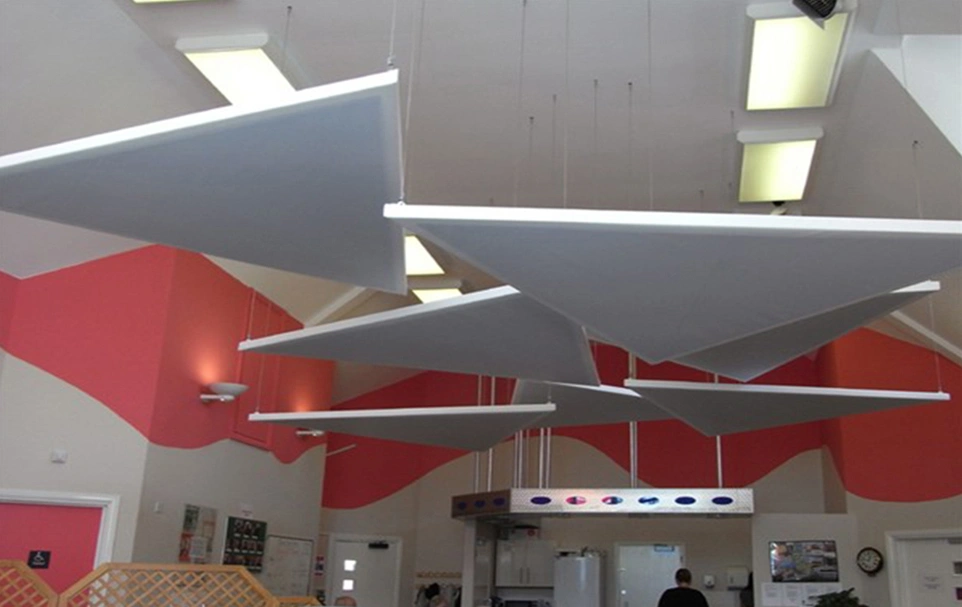

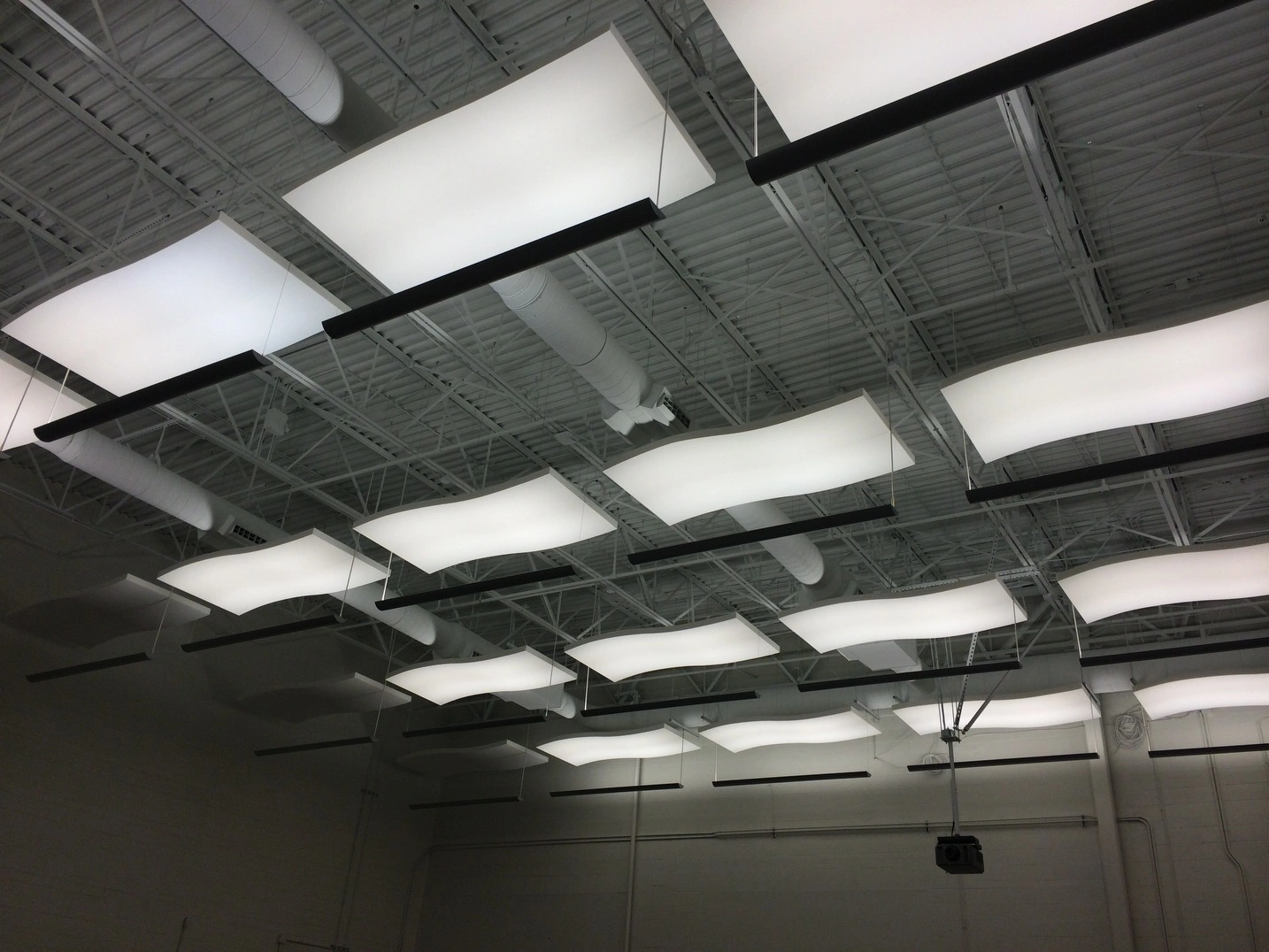

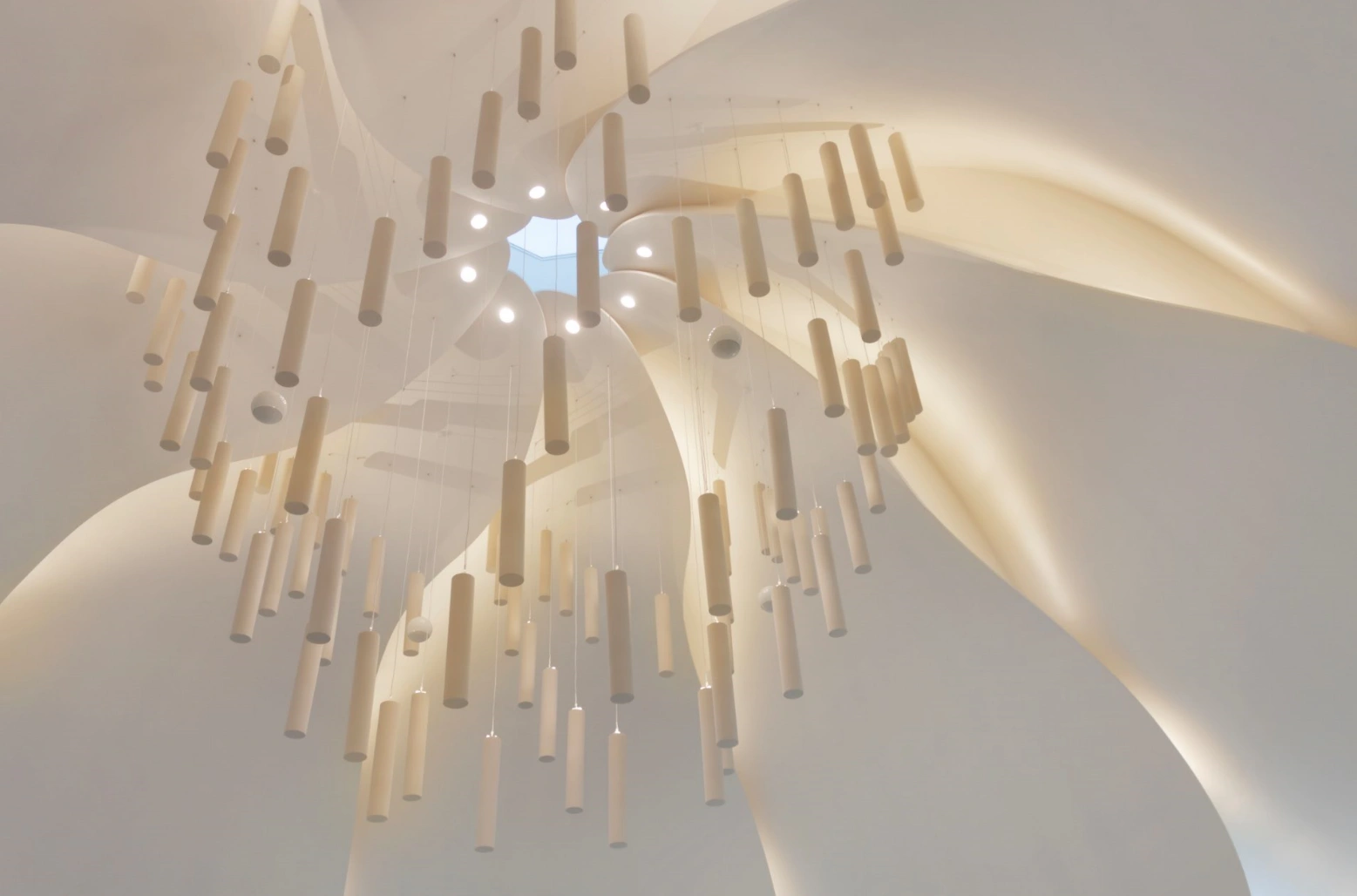

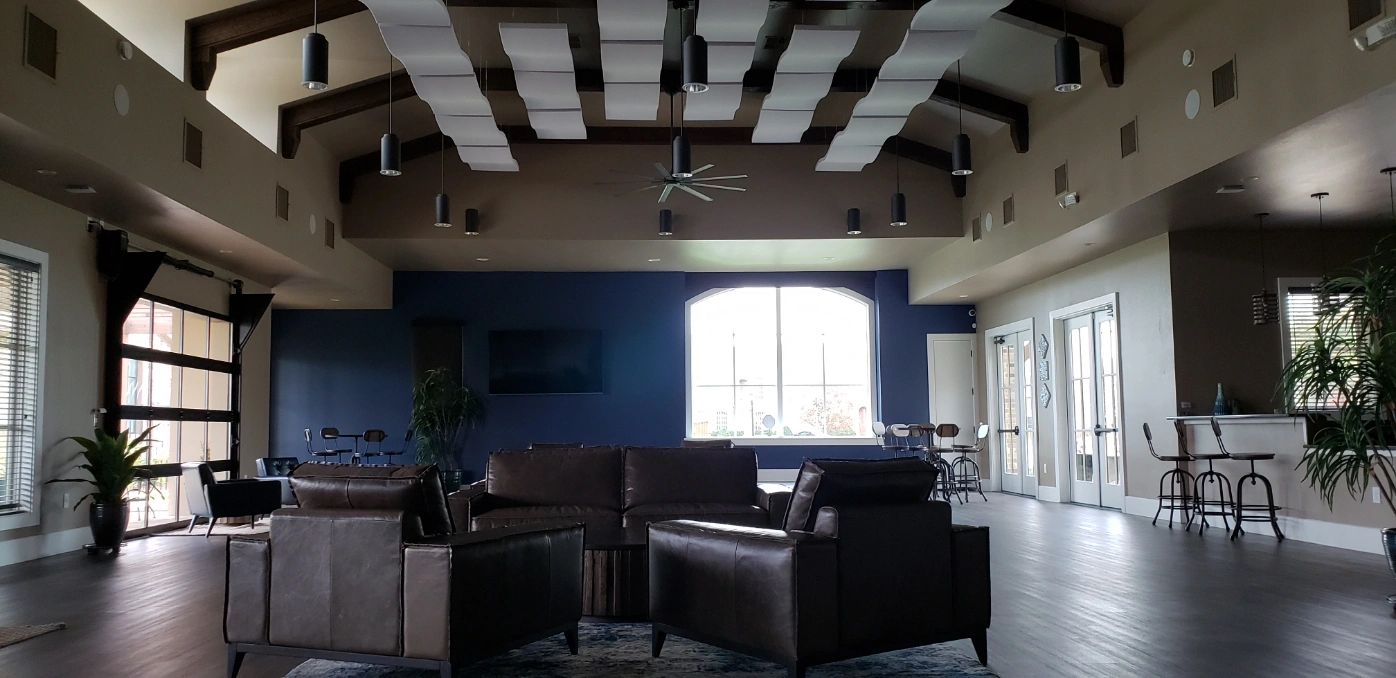

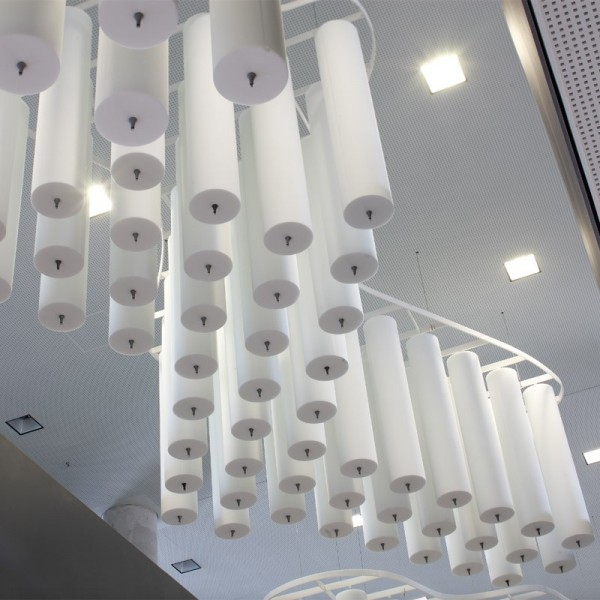

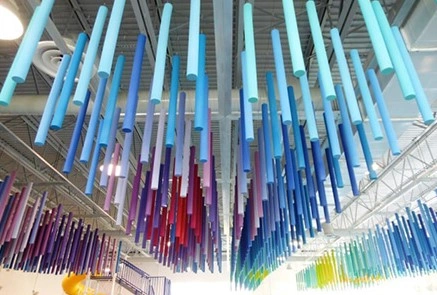

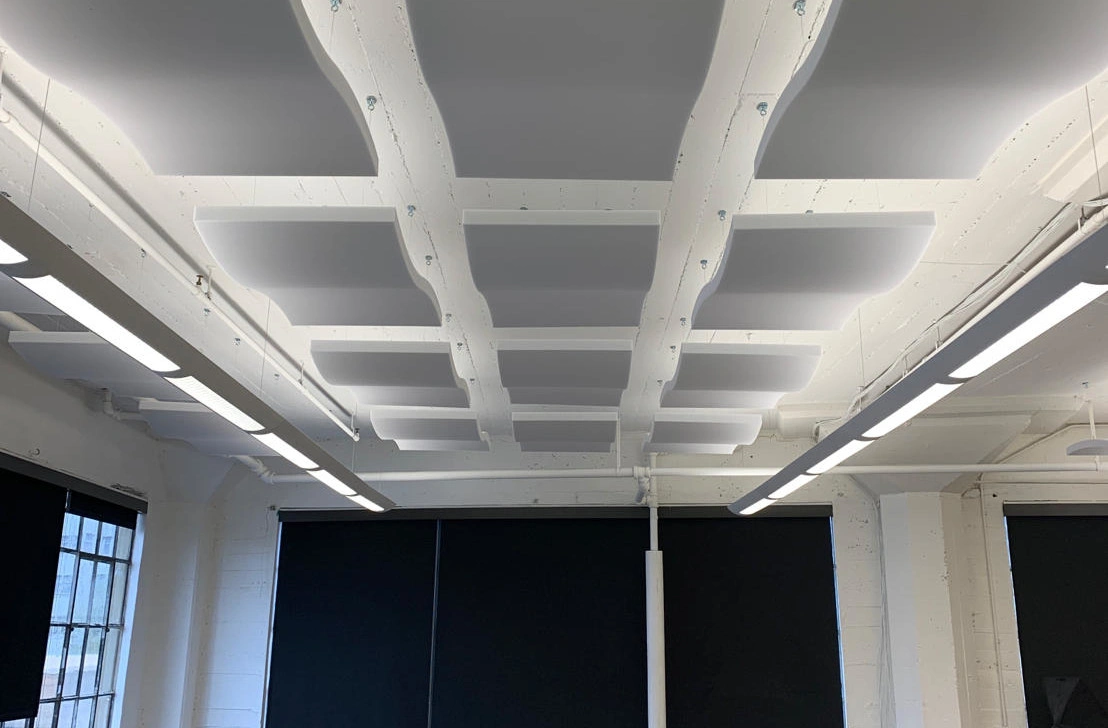

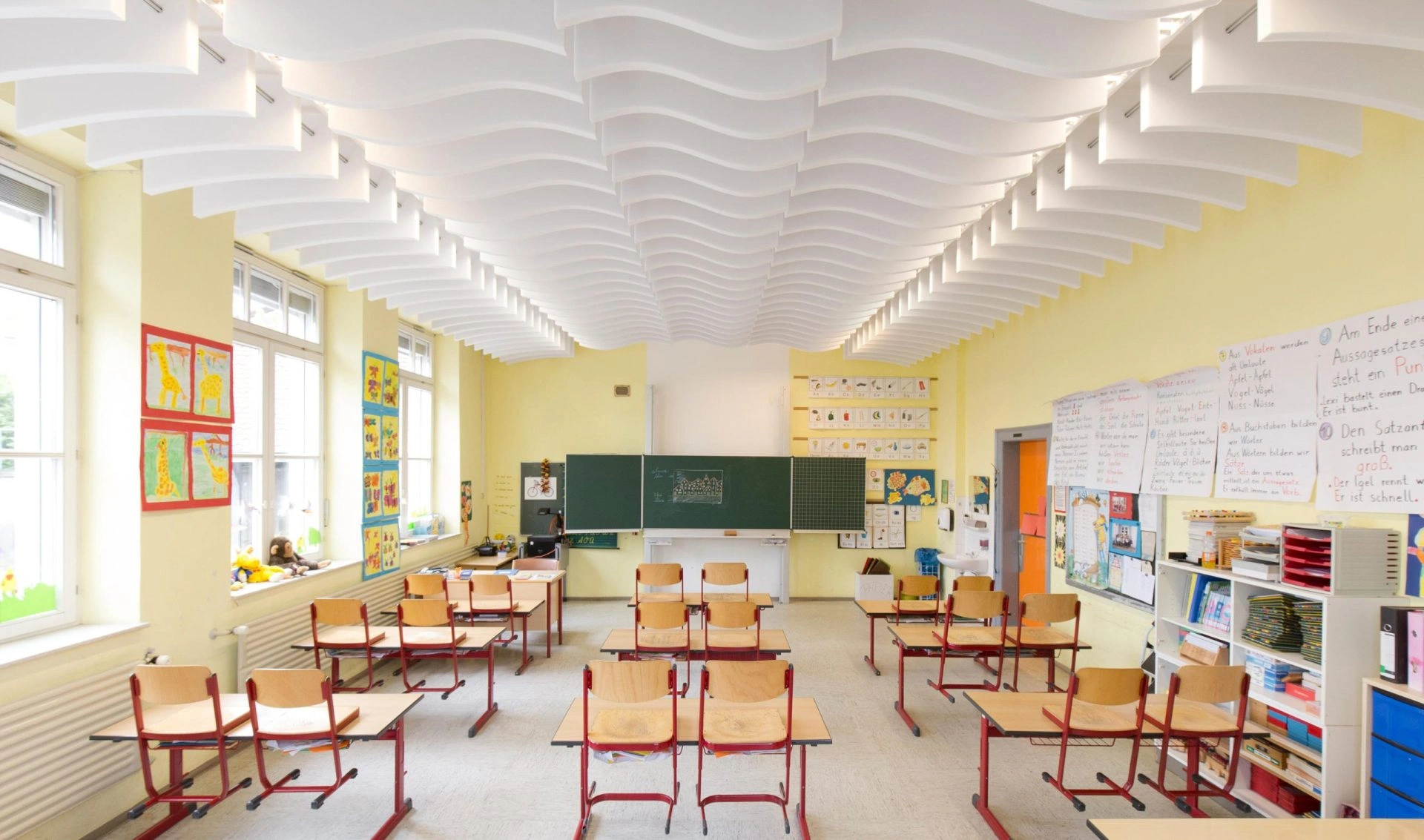

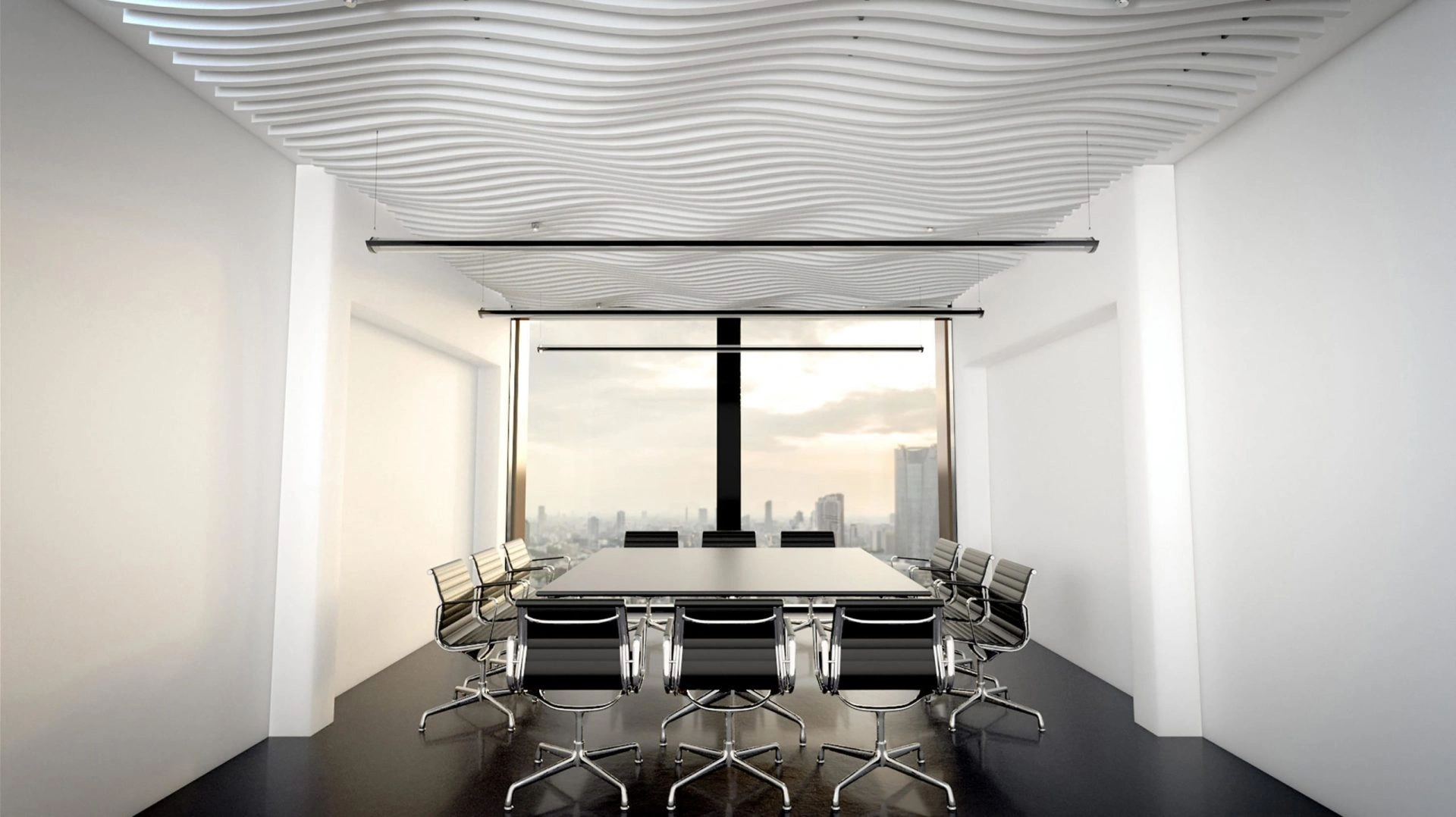

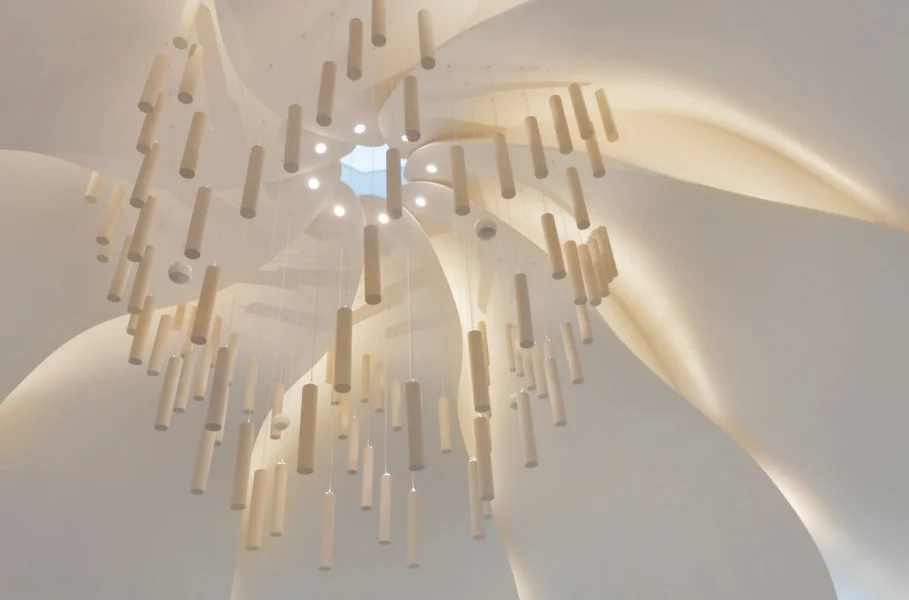

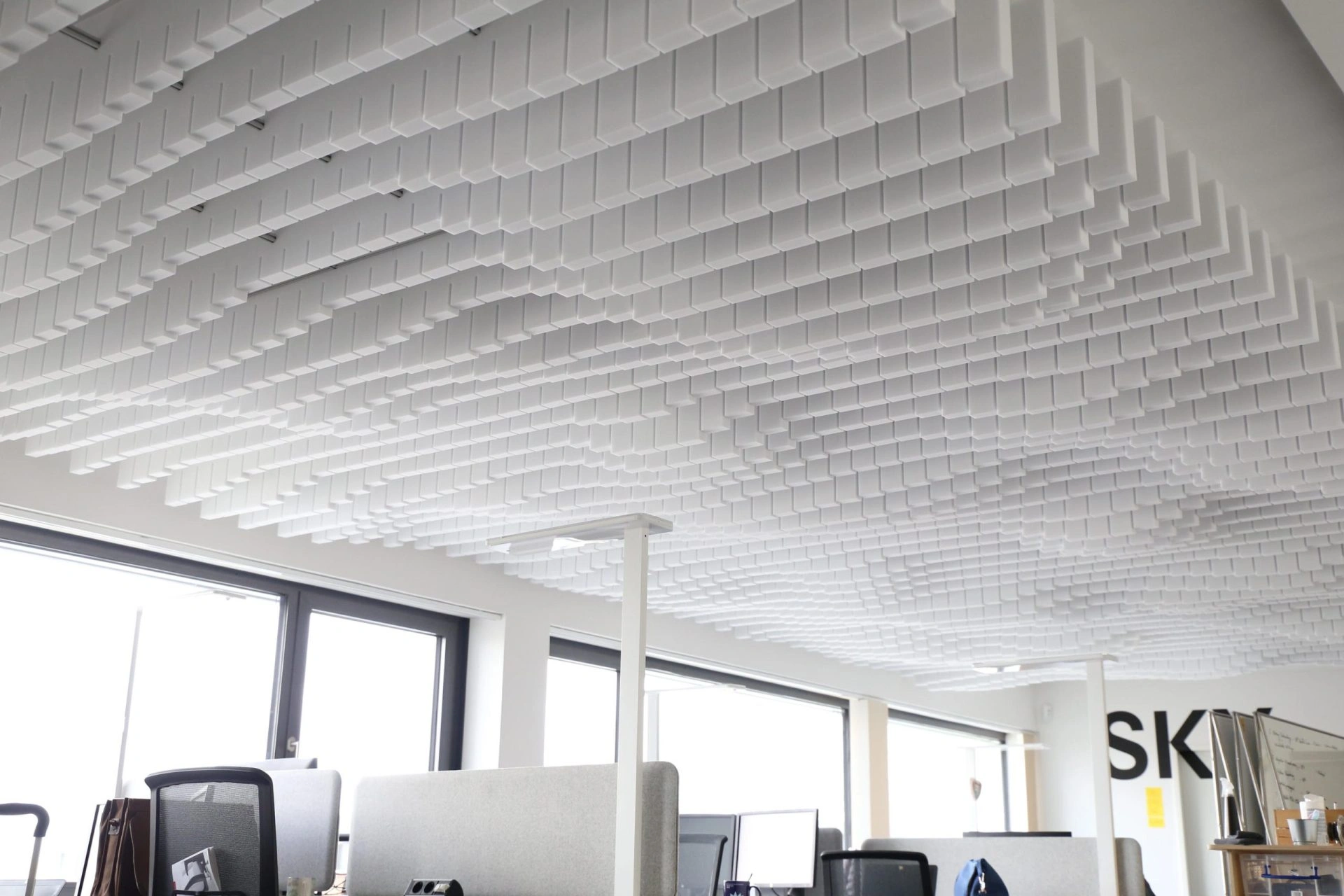

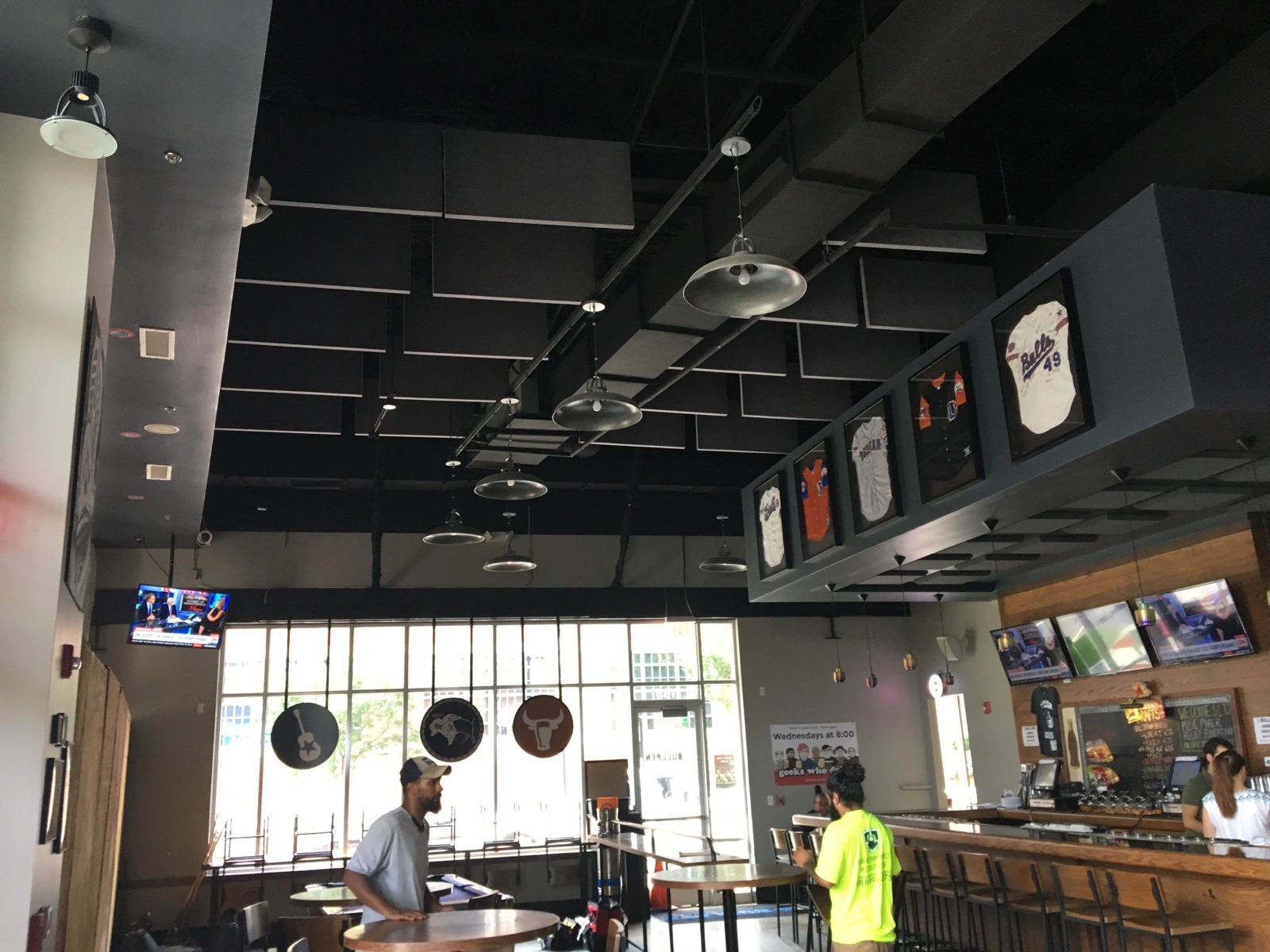

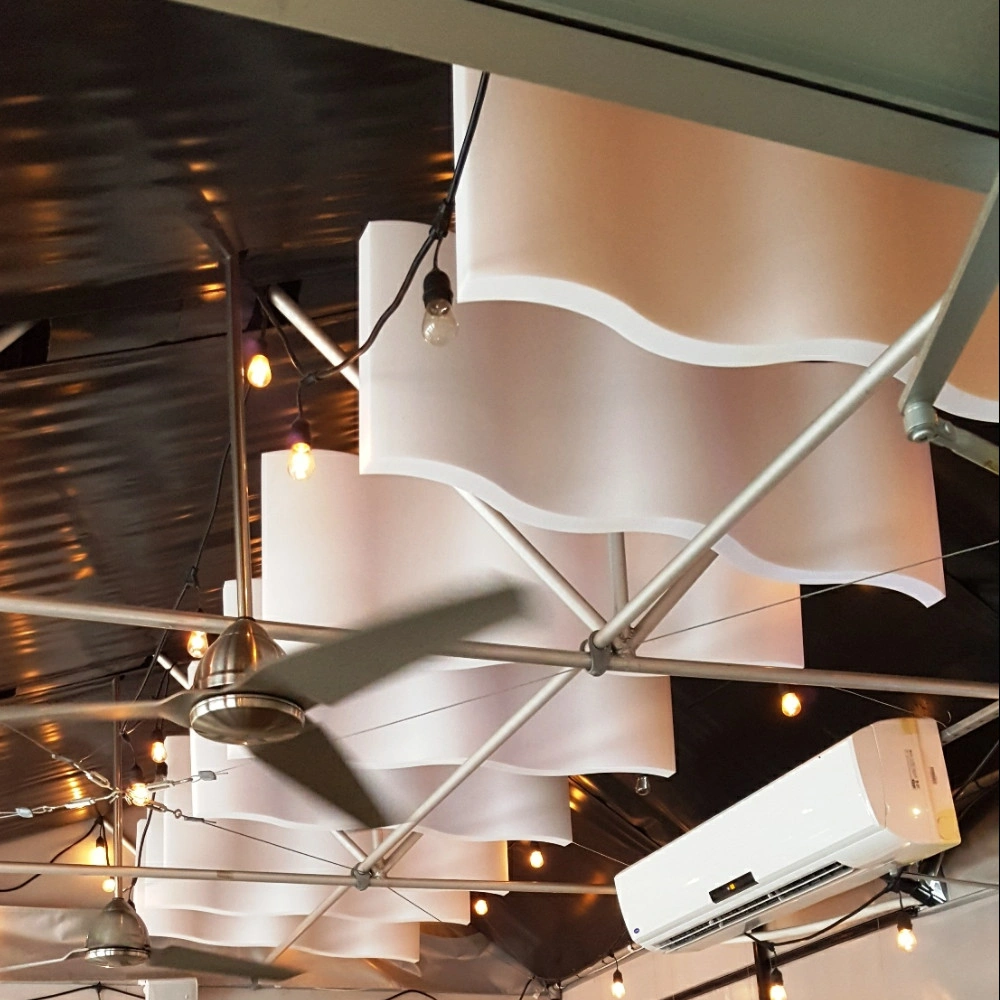

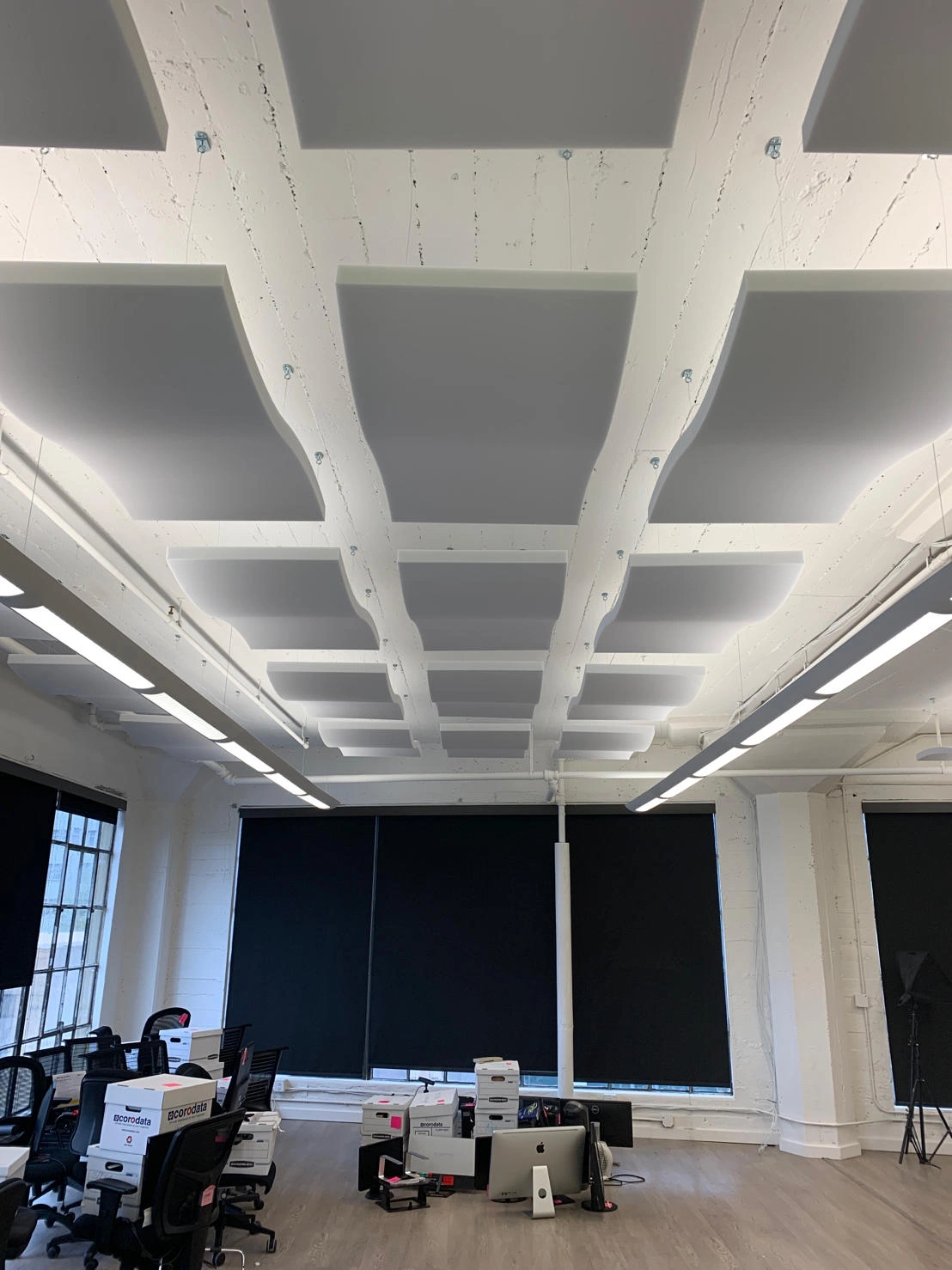

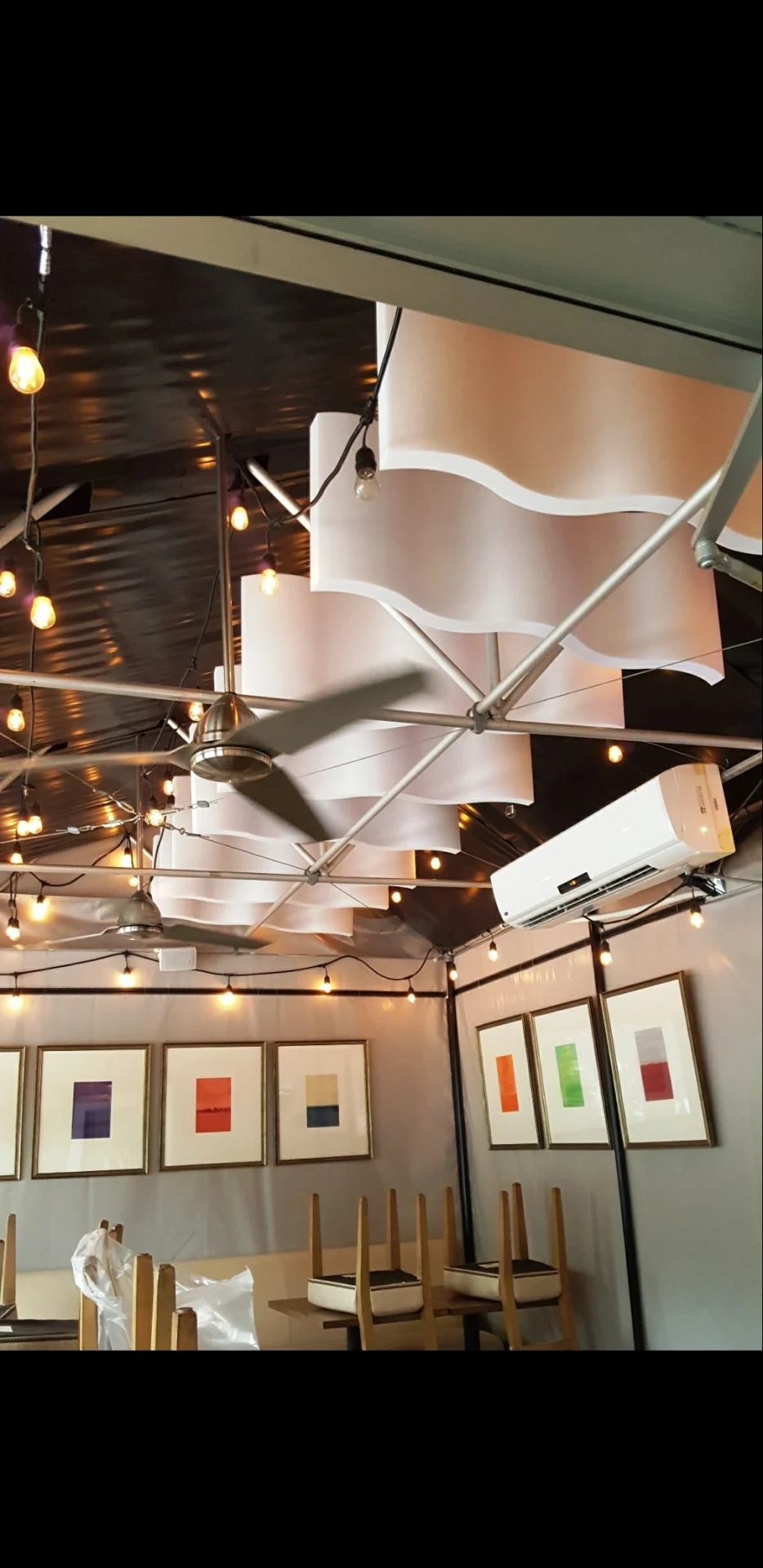

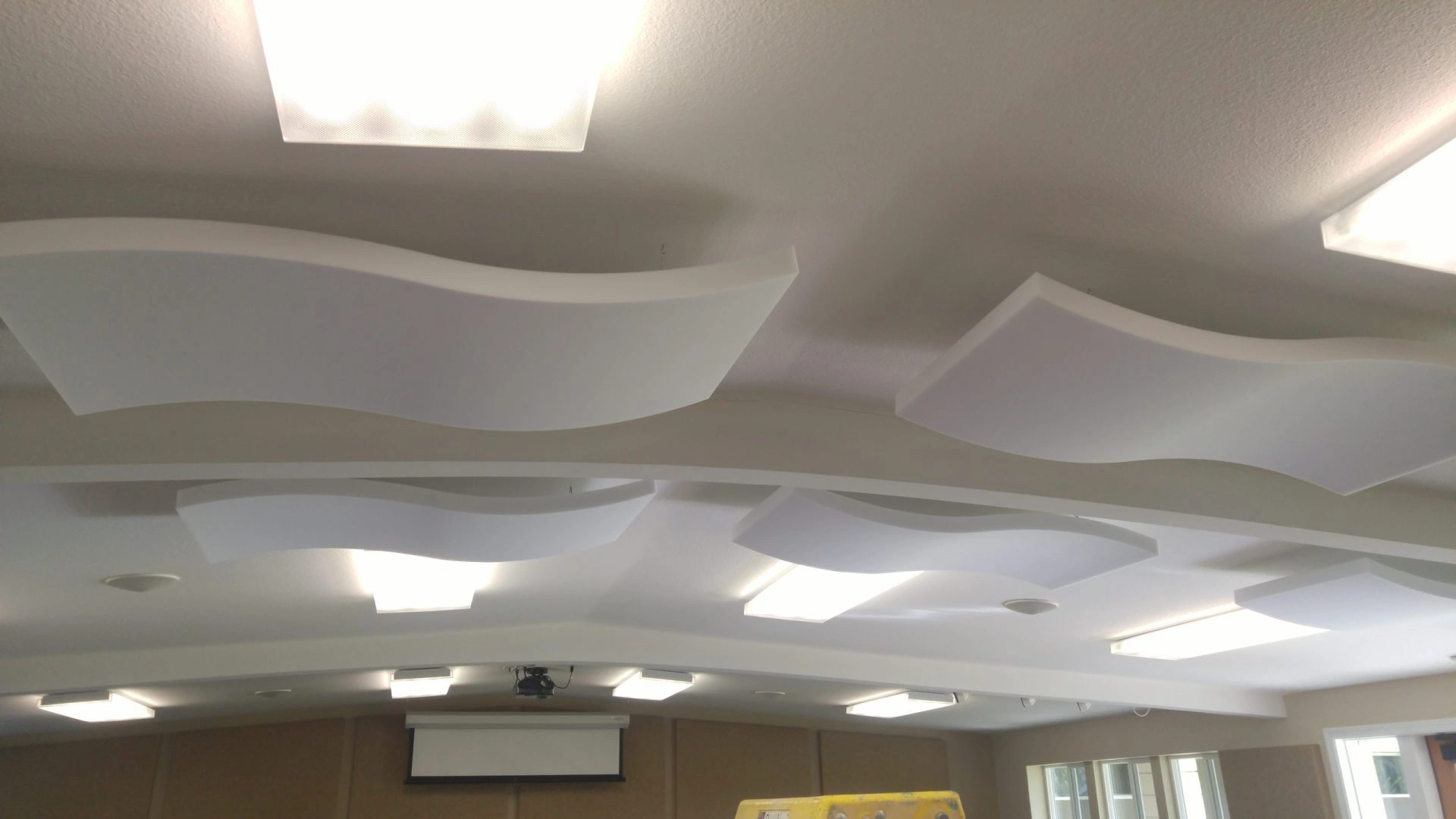

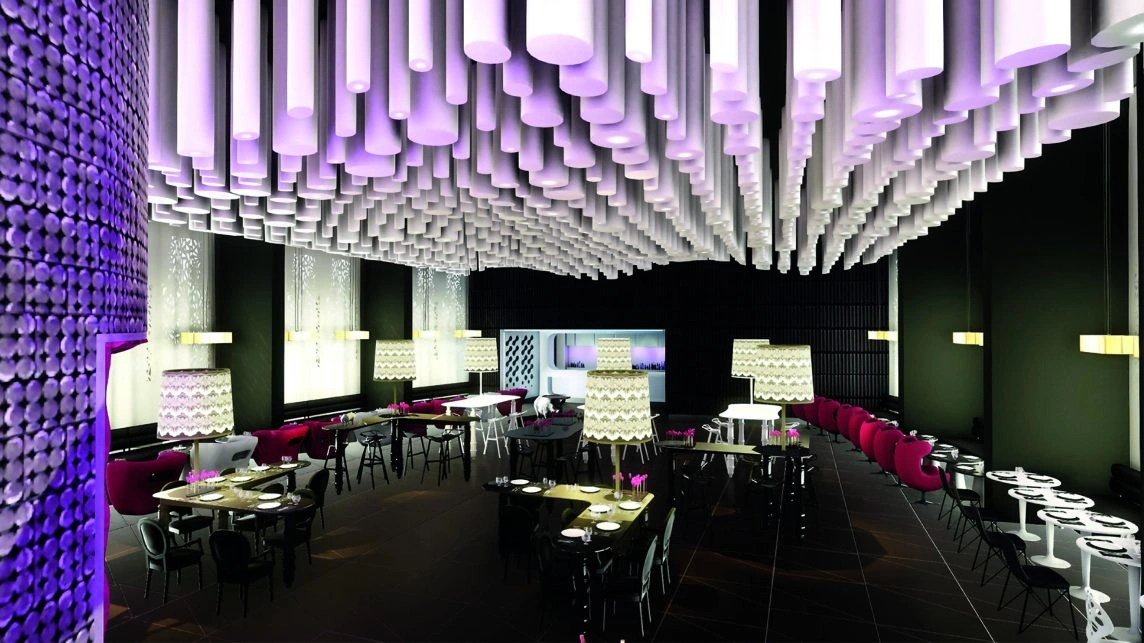

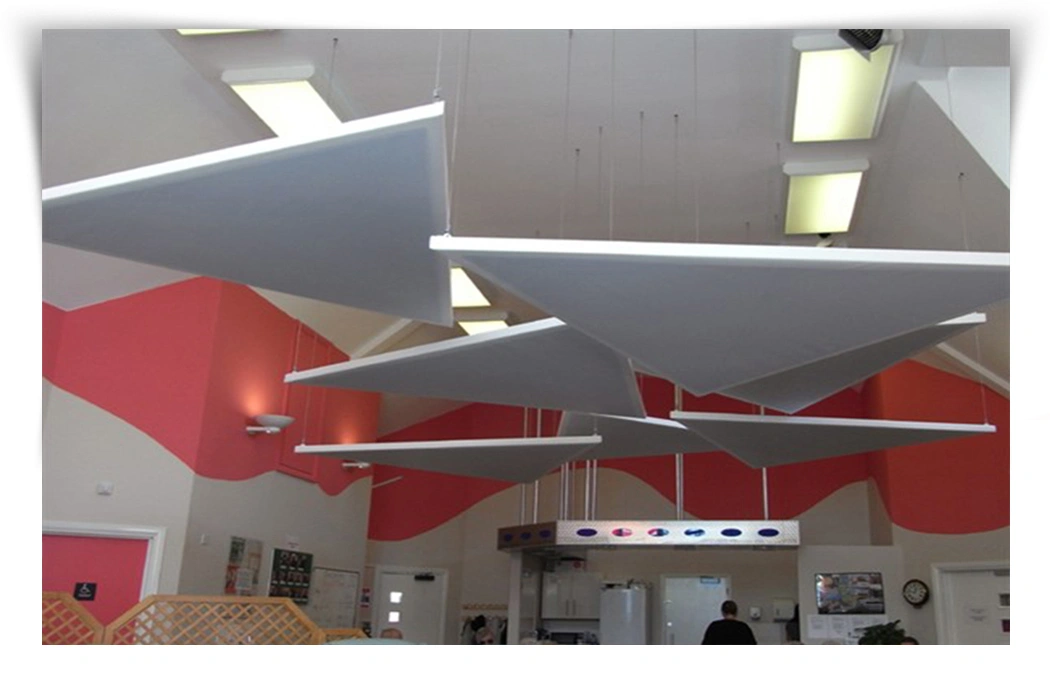

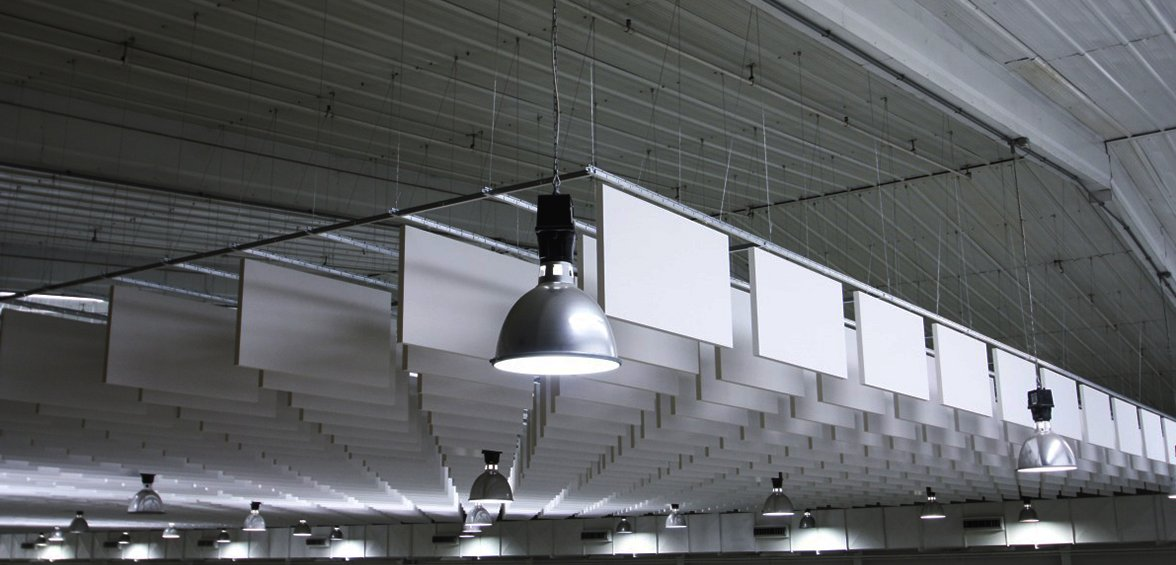

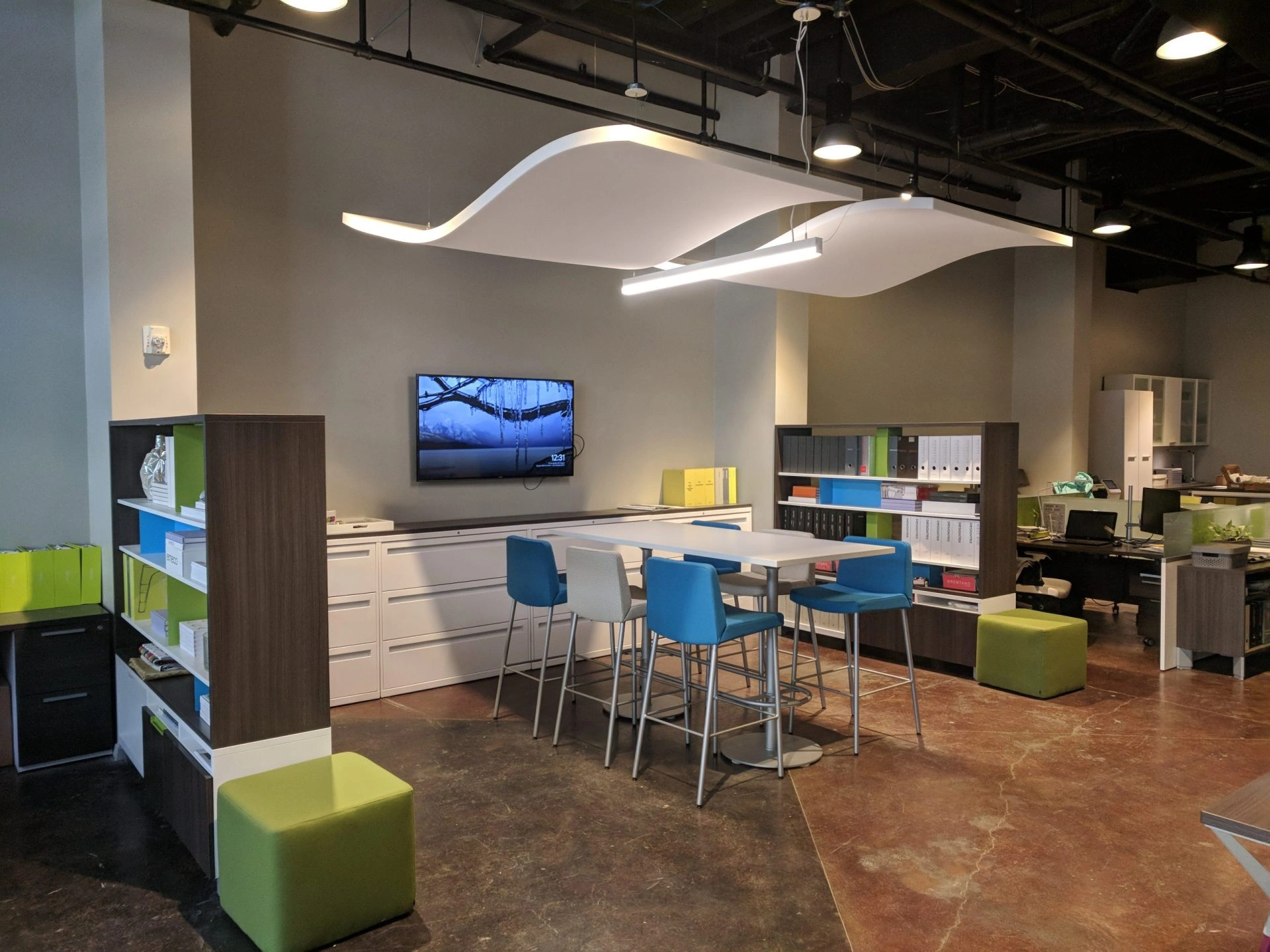

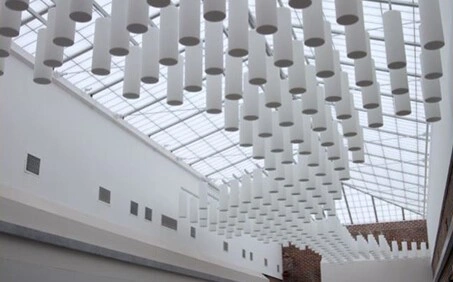

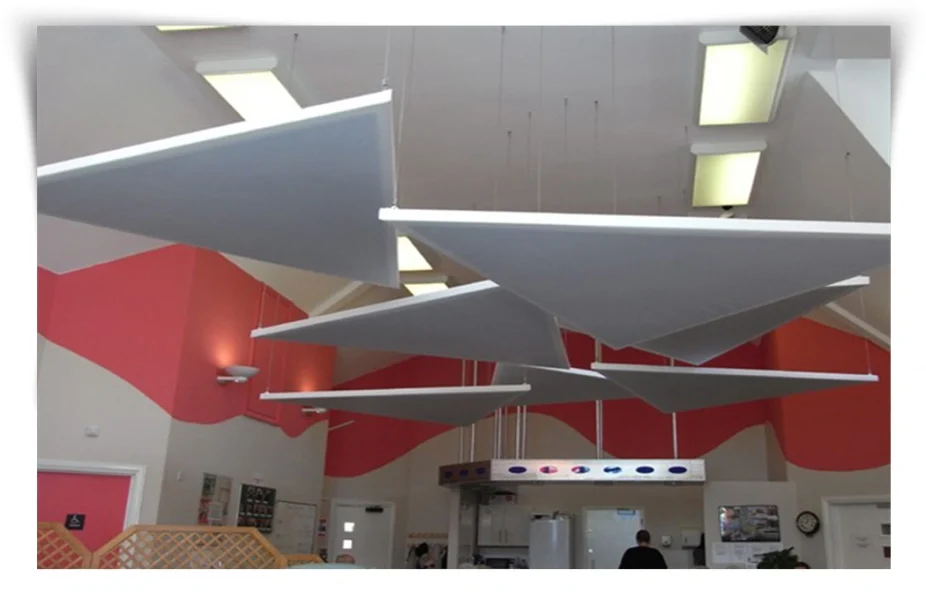

Sample Installations
