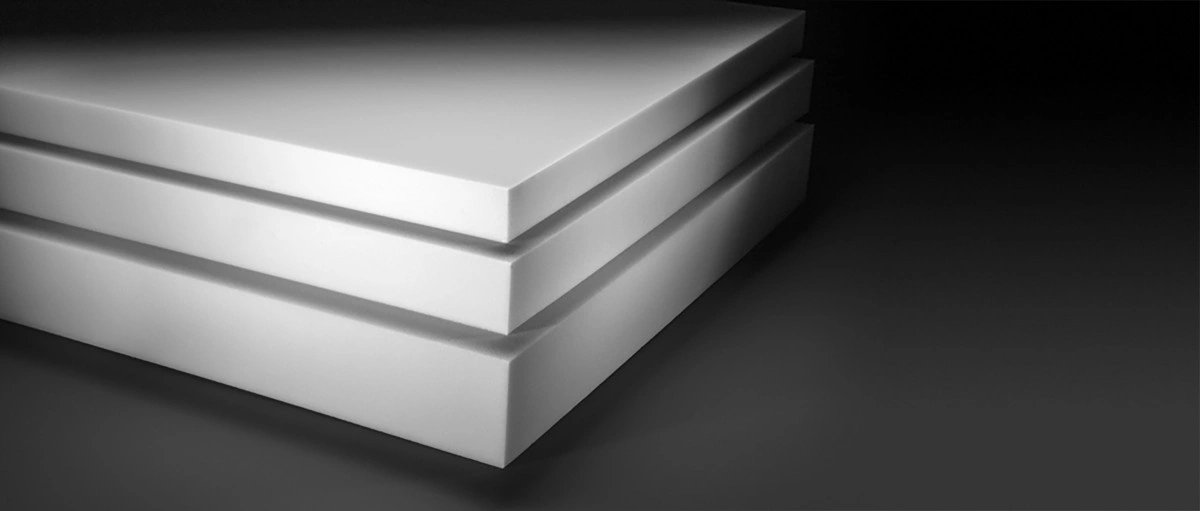

A line of lightweight, dimensionally sized panels, that are available in multiple thicknesses to enable the maximization of absorptive space acoustics. With an NRC of 1.0 at 2” in thickness, it is easy to see how the Acoustifoam material outshines the competition within the acoustic design space.
Features
- Class “A” for fire (without used fire-retardant additives)
- Lightweight (easy to handle and install)
- Low-density (great for acoustics)
- Cross-linked structure (makes it resistant to most organic solvents)
- Easily ‘pantone’ colored and can be printed on
Size
2’x4, 4’x4’, 4’x8’

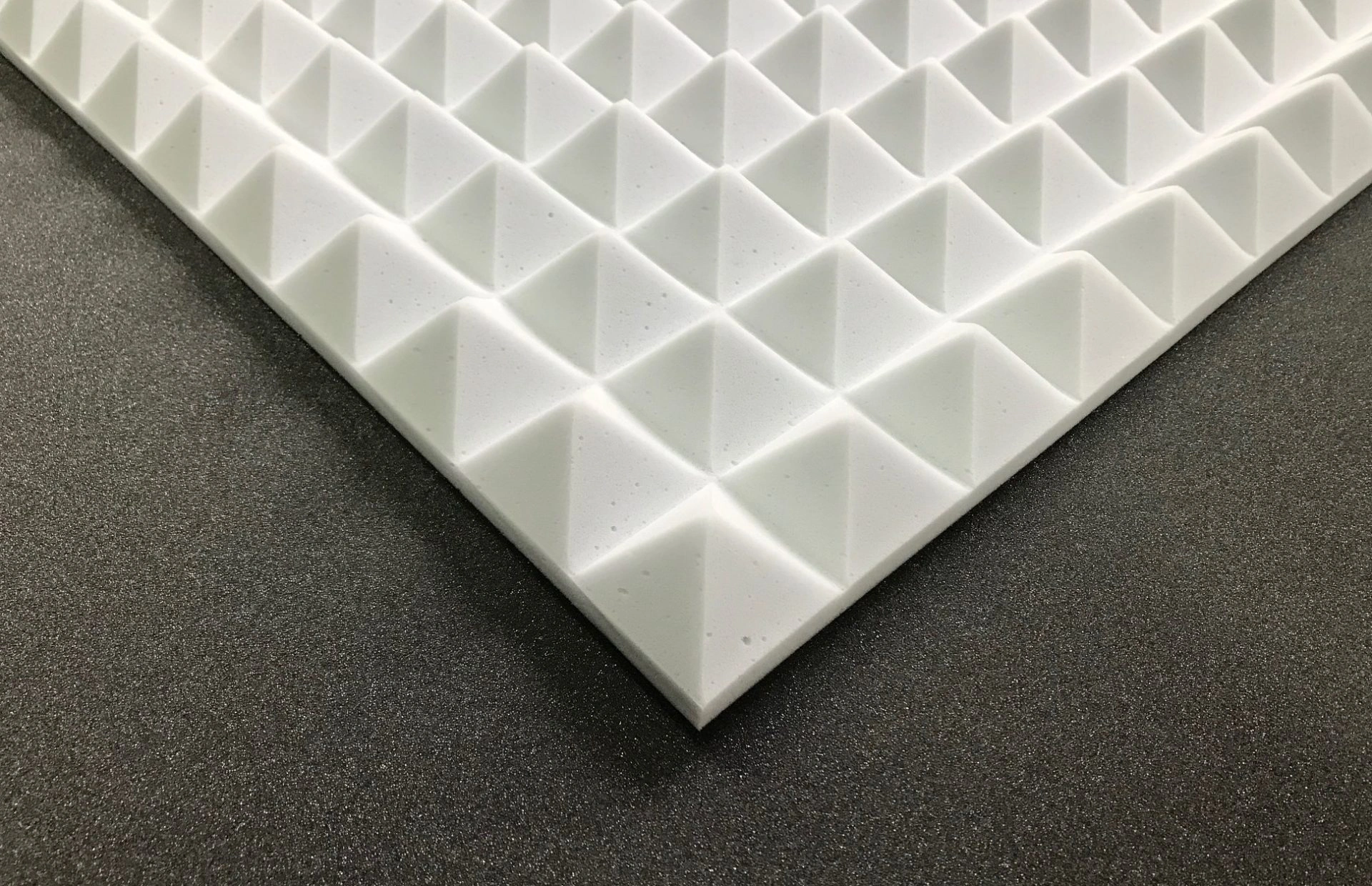

*custom sizes and profiles are available.
Thickness
1” (NRC – 0.65)
1.5” (NRC – 0.80)
2” (NRC – 1.0)
* custom thicknesses are available (from 0.5” to 19”)
Installation
Adhesive (construction or ‘spray’)
Type “A” or “E” Mounting
Fire-Resistance
Class “A” (ASTM E84)
Product Documentation
Sound Absorption Coefficient [Sabins / sqft ]
| Finish | Thickness (in) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.00 | 0.11 | 0.16 | 0.53 | 0.85 | 0.99 | 1.04 | 0.63 | 0.65 | A |
| 1.50 | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A | |
| 2.00 | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00 | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| 4.00 | 0.58 | 1.19 | 1.45 | 1.38 | 1.29 | 1.24 | 1.34 | 1.35 | A |
| Finish | White | ||||
| Thickness (in) | 1.50 | 2.00 | 3.00 | 4.00 | 5.00 |
| 125 Hz | 0.17 | 0.23 | 0.45 | 0.45 | 0.58 |
| 250 Hz | 0.28 | 0.48 | 0.87 | 0.87 | 1.19 |
| 500 Hz | 0.84 | 1.08 | 1.26 | 1.26 | 1.45 |
| 1000 Hz | 0.99 | 1.19 | 1.07 | 1.07 | 1.38 |
| 2000 Hz | 1.03 | 1.16 | 1.06 | 1.06 | 1.29 |
| 4000 Hz | 1.04 | 1.11 | 1.10 | 1.10 | 1.24 |
| SAA | 0.78 | 0.97 | 1.05 | 1.05 | 1.34 |
| NRC | 0.80 | 1.00 | 1.05 | 1.05 | 1.35 |
| Mounting Type | A | A | A | A | A |
Click image to view Acoustifoam FLAT PANELS pages on brochure.

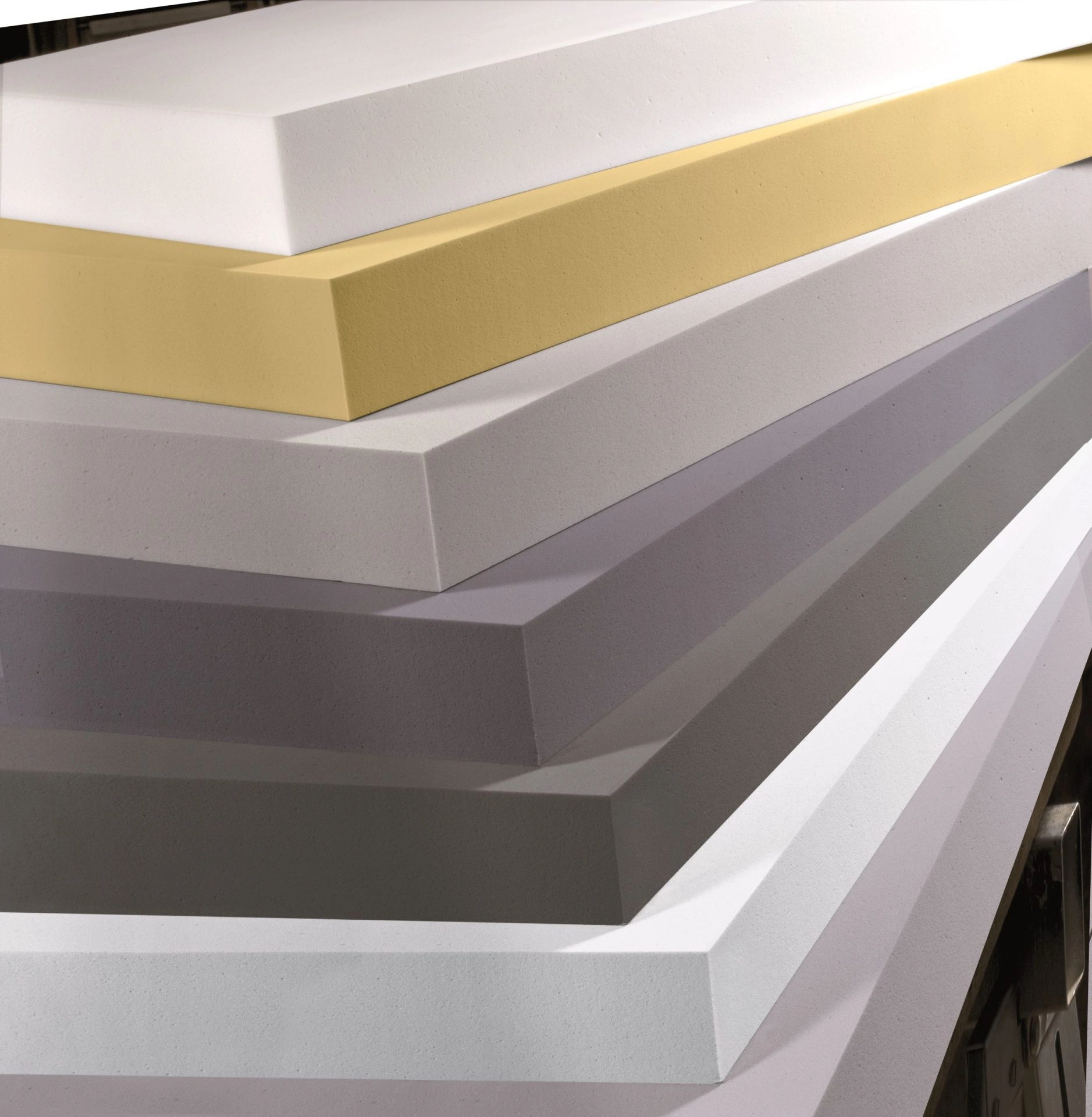

Standard Colors
We offer 10 standard colors to choose from.
Ready to Order?
Lead time and shipping costs vary by product. If you are ready to place an order, CLICK HERE to get a quote for your Acoustifoam FLAT PANELS project.

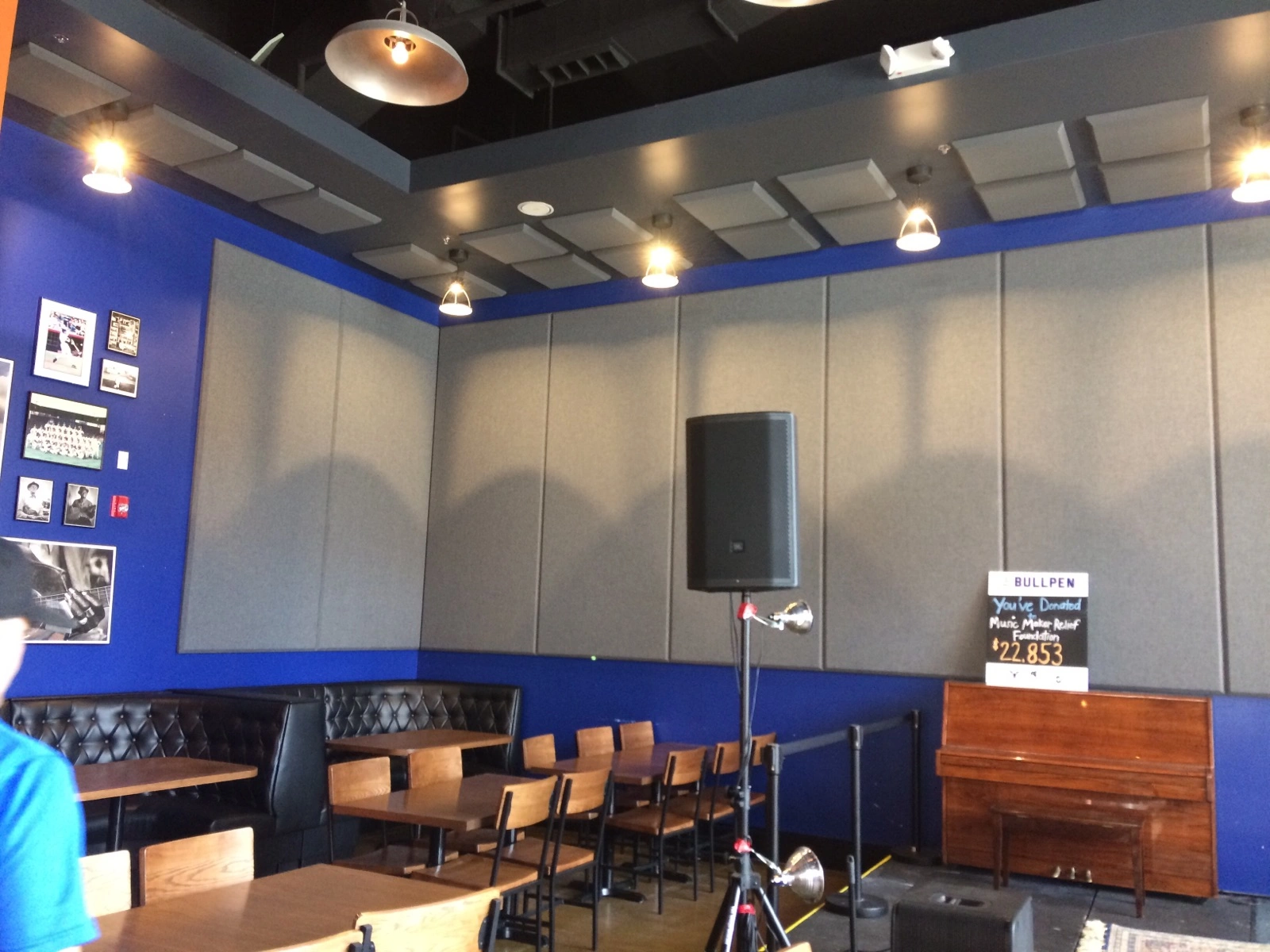

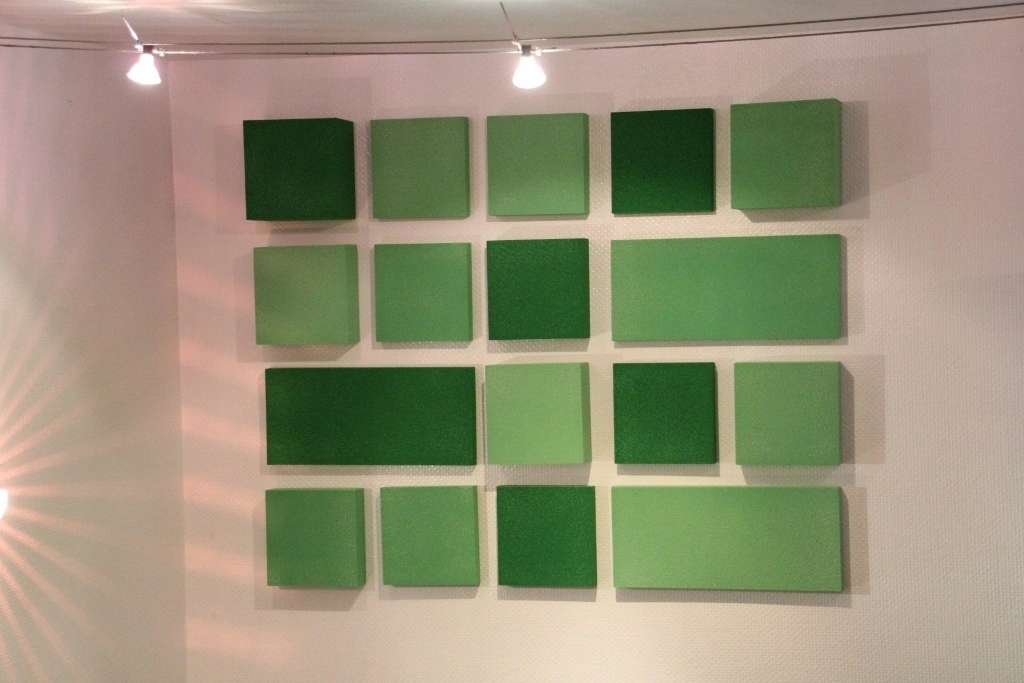

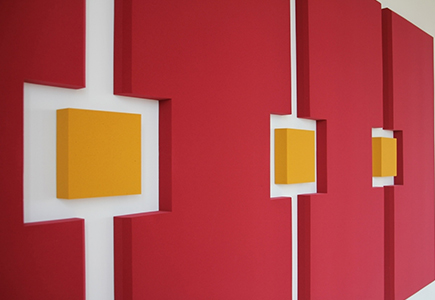

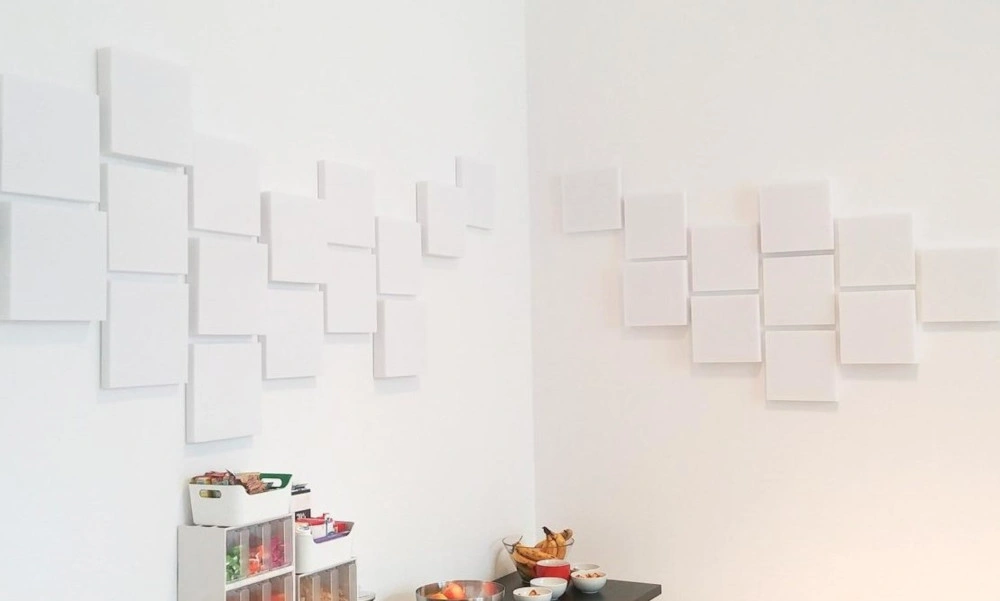

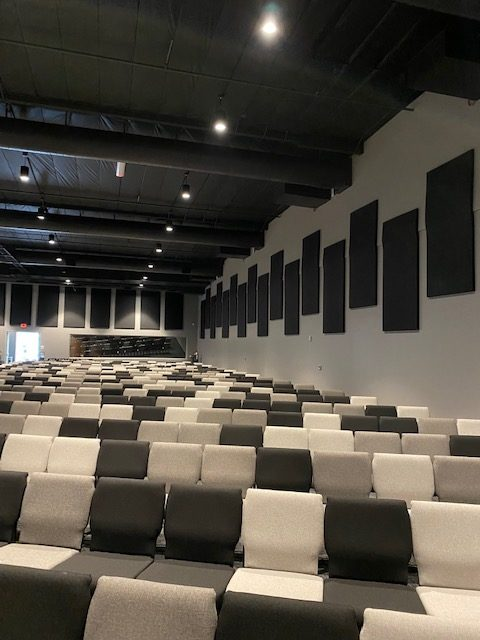

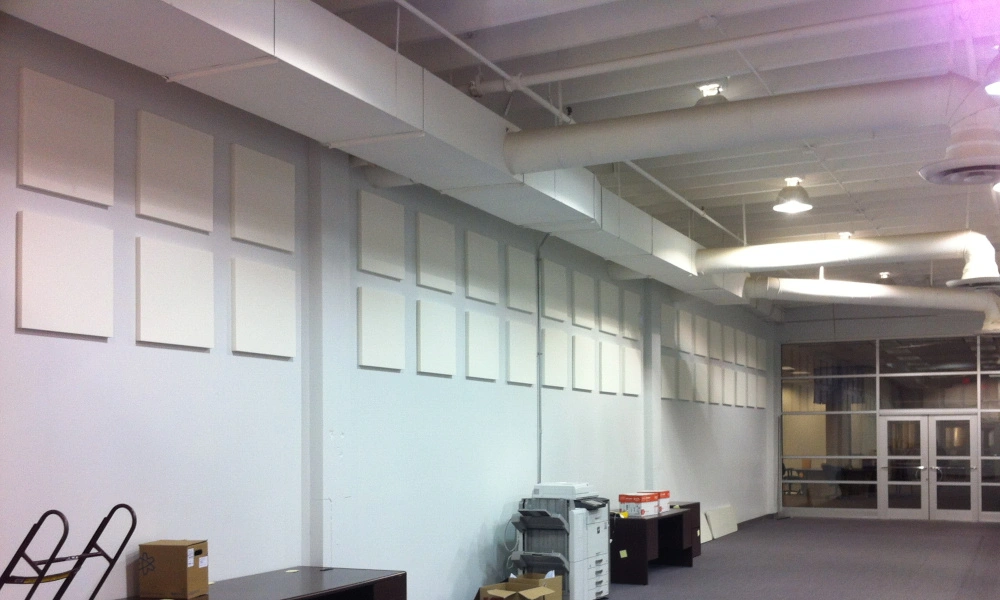

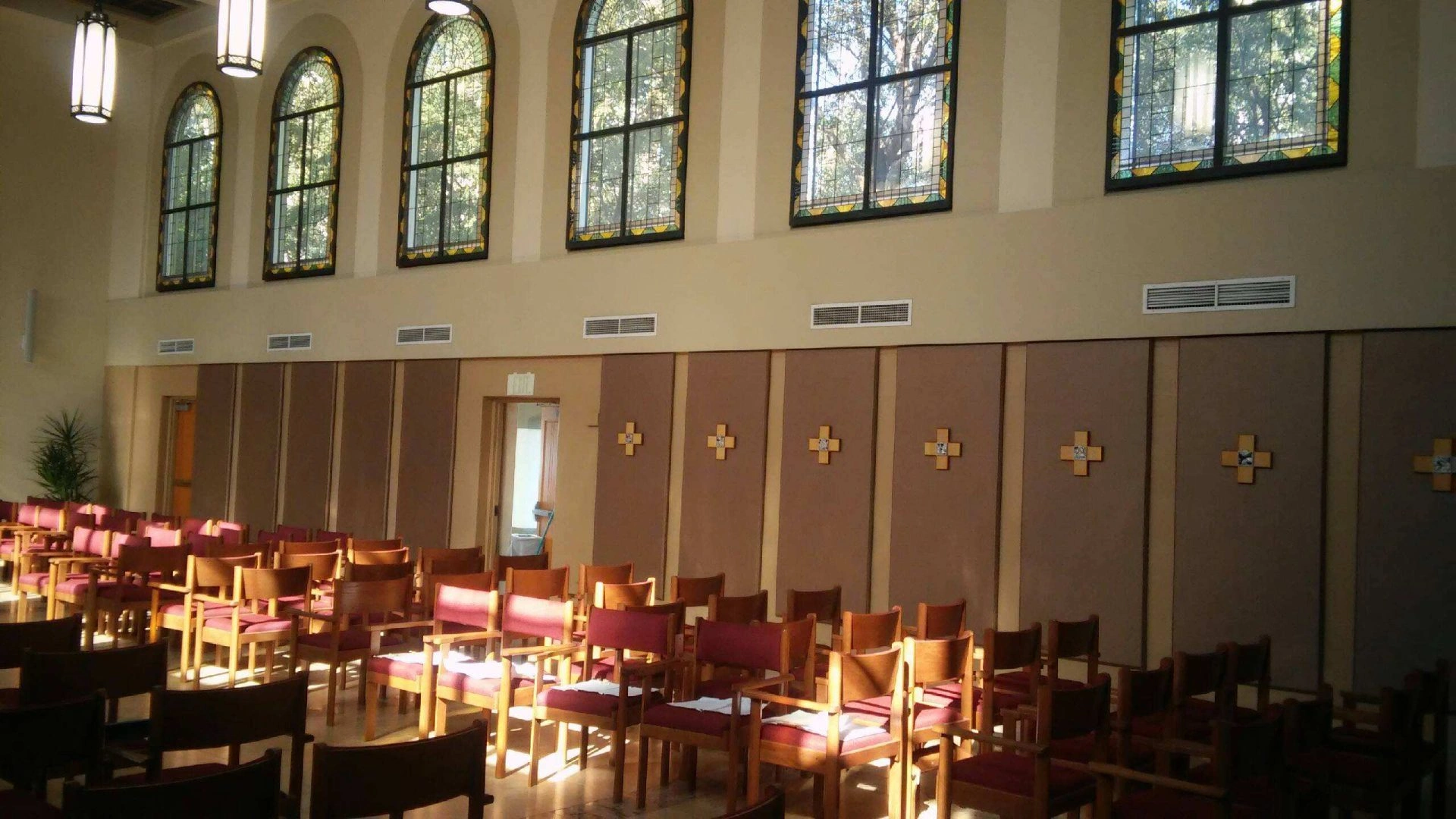

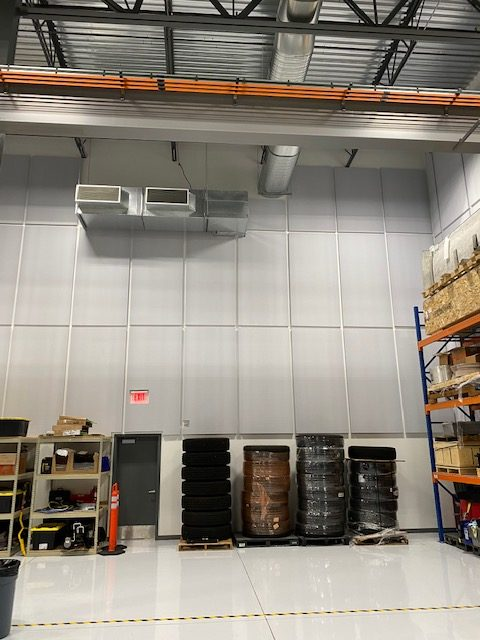

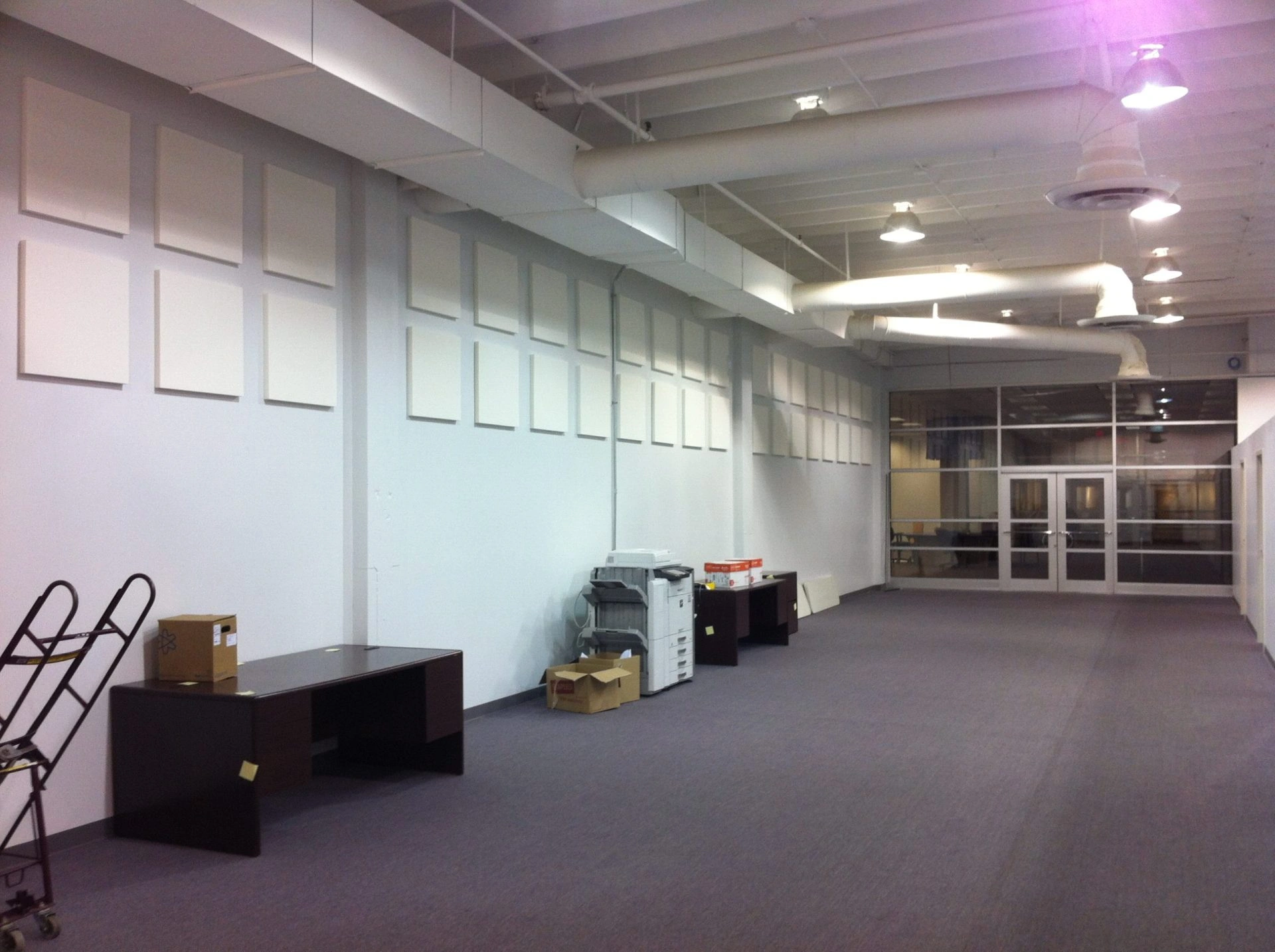

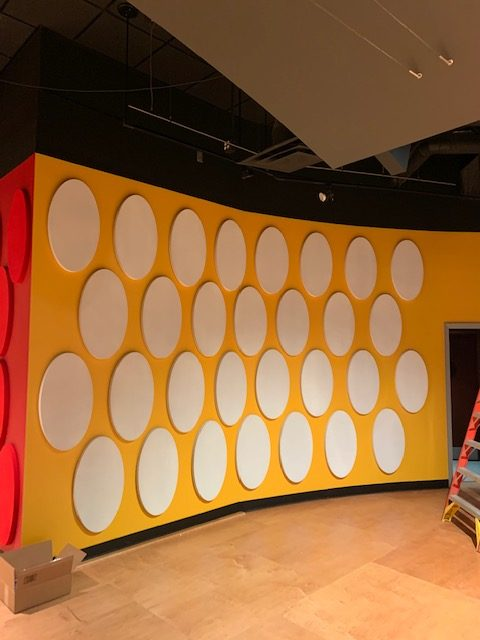

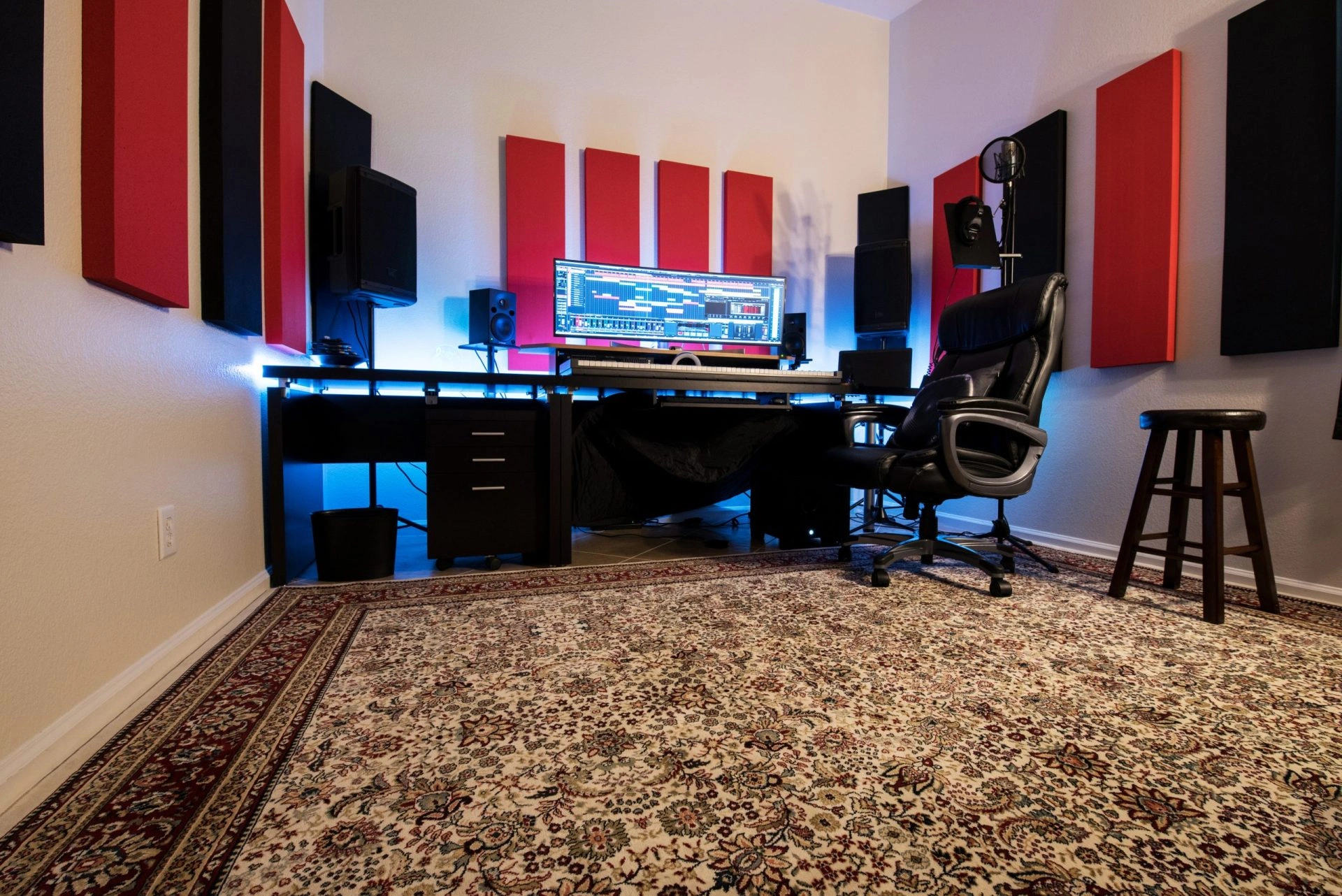

Sample Installations
