CoreBOO GROOVE Panels are CNC milled profile panels cut from laminated solid bamboo stock. Available in 3 different versions, each with a consistent though different topical profile and pattern, clean, sustainable bamboo lines are yours for the offering. Comes in our standard 3 colors options, either in a smooth clear urethane, or with a more matte, exterior-grade European oil coating.

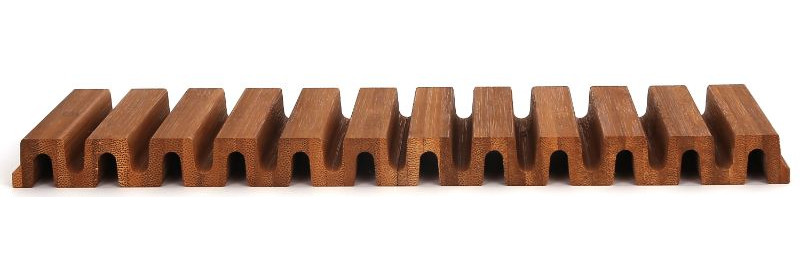

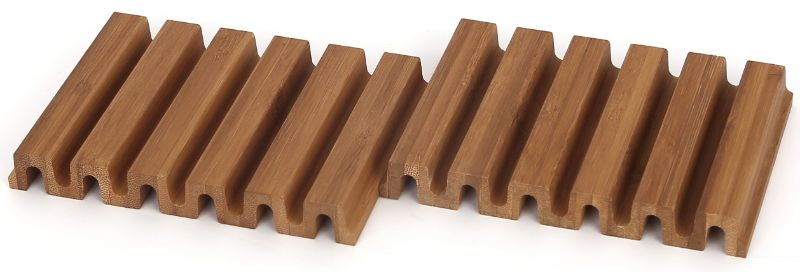

The CoreBOO GROOVE Panels provide long parallel runs of milled bamboo ridges in three different profiles or versions. With each piece easily aligned with another adjacent piece, a seamless ‘grooved’ wall in literally a pin nail away from reality.
Features
- Large-format wall panel
- Available in multiple colorways to accentuate design.
- Standard and simple installation methods
- Class A fire-rating (ASTM E84-17)

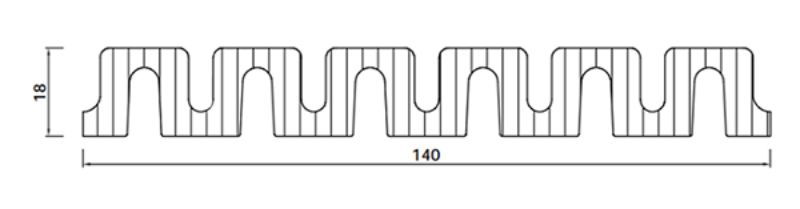

Ribs
Click Image to View Larger
| Individual Ridge Width | 17mm (~ 2/3”) |
| Individual Groove (i.e., Valley) Width | 8.5mm (~ 1/3”) |
| Panel Width | 140mm (~ 5 1/2″) |
| Panel Length | 2.43m (~ 96″) * other lengths available upon request (up to 5.8m/19ft) |
| Panel Thickness | ~ 18mm (~ 3/4”) |

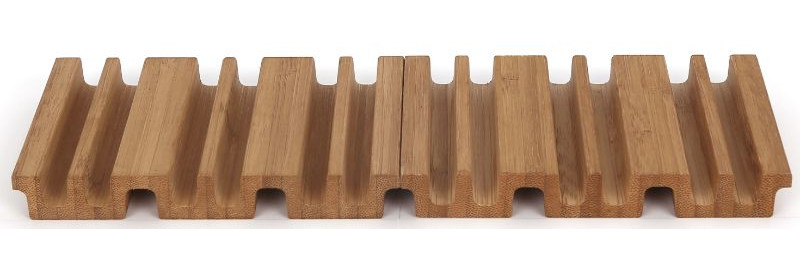

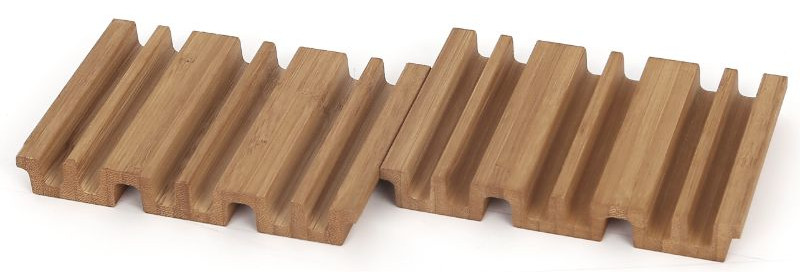

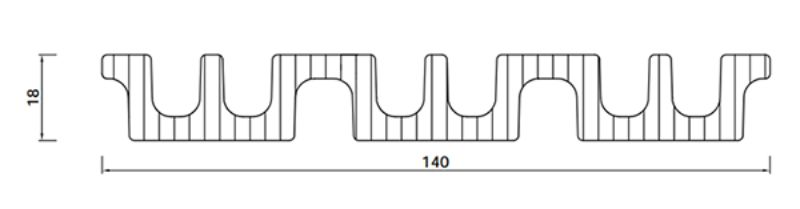

Mesa
Click Image to View Larger
| Individual Ridge Width | ~ 5mm, 21mm (~ 3/16”, 13/16”) |
| Individual Groove (i.e., Valley) Width | ~ 9mm (~ 3/8”) |
| Panel Width | 140mm (~ 5 1/2″) |
| Panel Length | 2.43m (~ 96″) * other lengths available upon request (up to 5.8m/19ft) |
| Panel Thickness | ~ 18mm (~ 3/4”) |

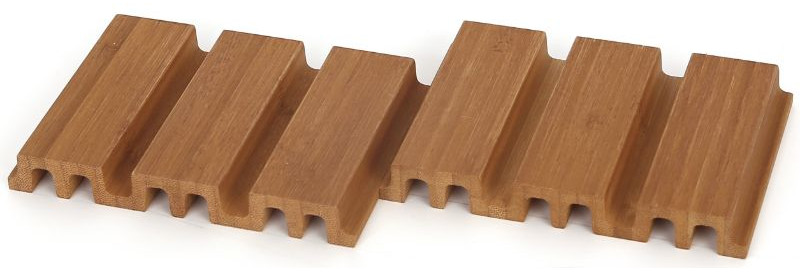

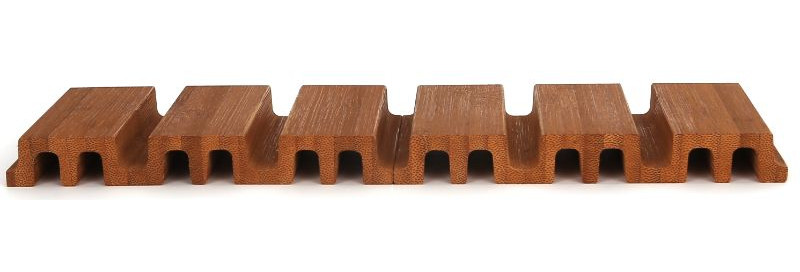

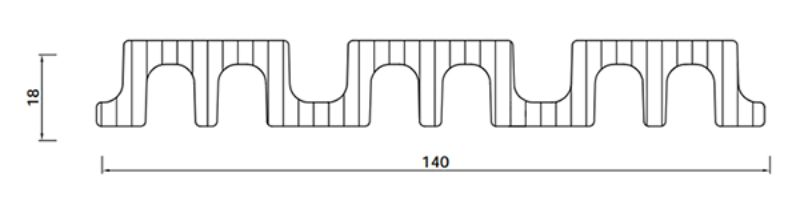

Plateau
Click Image to View Larger
| Individual Ridge Width | ~ 35mm (~ 1 3/8”) |
| Individual Groove (i.e., Valley) Width | ~ 11mm (~ 7/16”) |
| Panel Width | 140mm (~ 5 1/2″) |
| Panel Length | 2.43m (~ 96″) * other lengths available upon request (up to 5.8m/19ft) |
| Panel Thickness | ~ 18mm (~ 3/4”) |
Click image to view CoreBOO GROOVE Panels pages on brochure.
Ready to Order?
Lead time and shipping costs vary by product. If you are ready to place an order, CLICK HERE to get a quote for your CoreBOO Panels project.
Installation:
- Direct Application
Customizations:
- Color (topical stains available – see: Color Option Chart)
- “FSC” material available
Environmental Compliance
- Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
- E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
- CARB 2 and LEED-Compliant (FSC material available)
Composition
- Bamboo – 100% bamboo
Finish
- Standard product (Dark/Medium/Light) – UV cured water-based urethan
- “Stains” – Waco Exterior Oil
Product Documentation
- Product Data Sheet
- CSI Specification
- Installation Instructions
