SLAT panels

Our CoreBOO Slat Panel products offer an all-encompassing solution for any “slat panel” project, whether it is for a wall application, or one for the ceiling.  We offer standard slats and slat configurations (which can be customized) and 5 different “substrate” assemblies, all of which are available in 9 standard colors.

Select Slat Profile

The standard CoreBOO Slat Panel profiles each have specific dimensions which are separated by specific spacing.

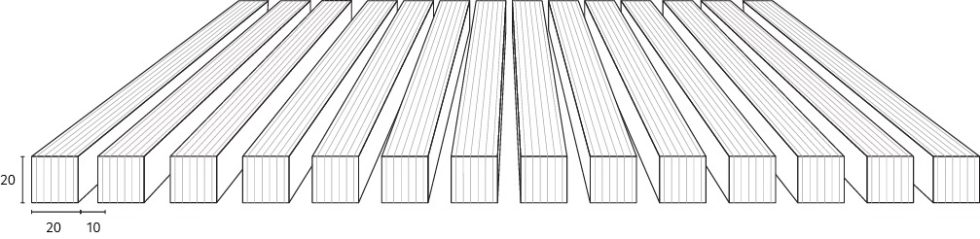

Square 20 (tight)

Slat Size: 20mm x 20mm (3/4″ x 3/4″)
Spacing: 10mm (3/8″)

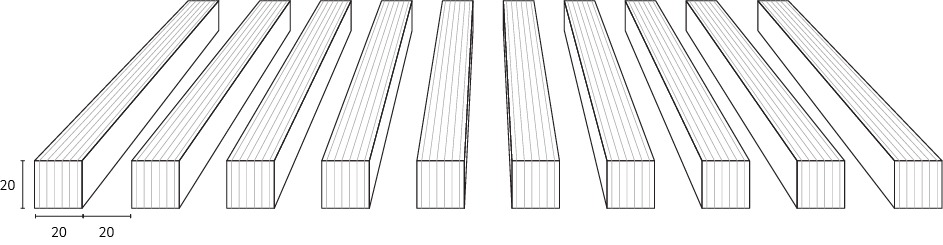

Square 20

Slat Size: 20mm x 20mm (3/4″ x 3/4″)
Spacing: 20mm (3/4″)

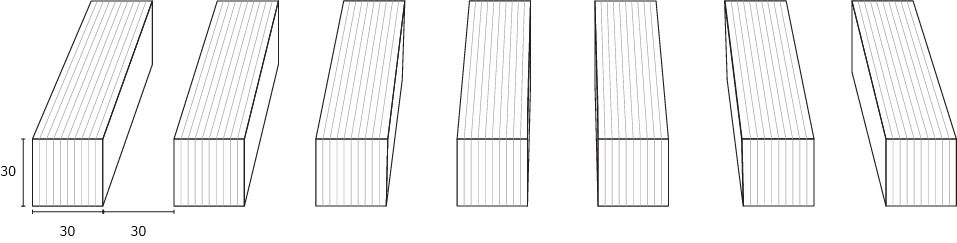

Square 30

Slat Size: 30mm x 30mm (1-1/4″ x 1-1/4″)
Spacing: 30mm (1-1/4″)

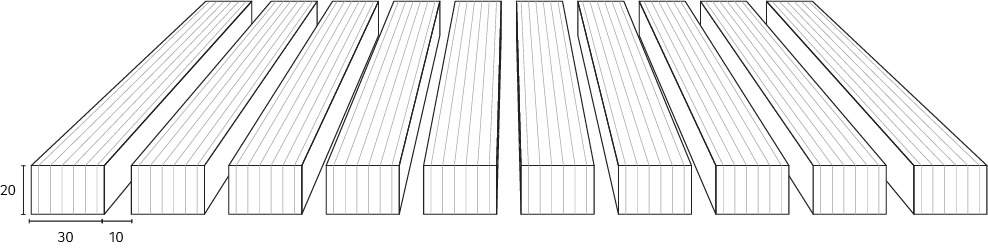

Flat 30 (tight)

Slat Size: 20mm x 30mm (3/4″ x 1-1/4″)
Spacing: 10mm (3/8″)

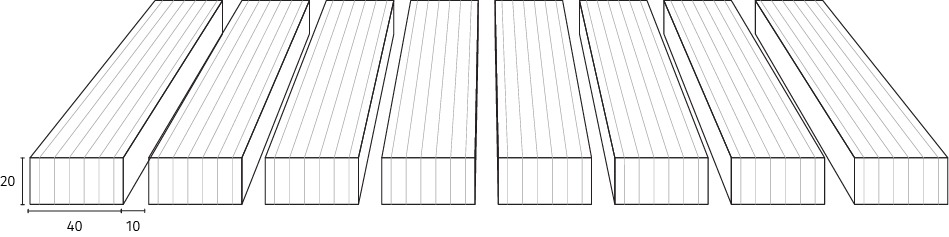

Flat 40 (tight)

Slat Size: 20mm x 40mm (3/4″ x 1-5/8″)
Spacing: 10mm (3/8″)

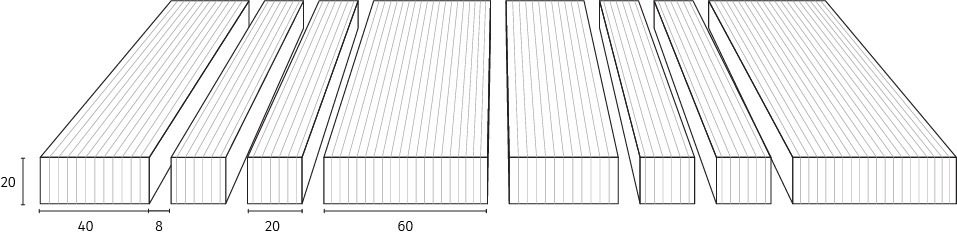

Flat Mix

Slat Size: 20mm x 40|20|20|60mm
(3/4″ x 1-5/8″|3/4″|3/4″|2-1/3″)
Spacing: 8mm (~1/3″)

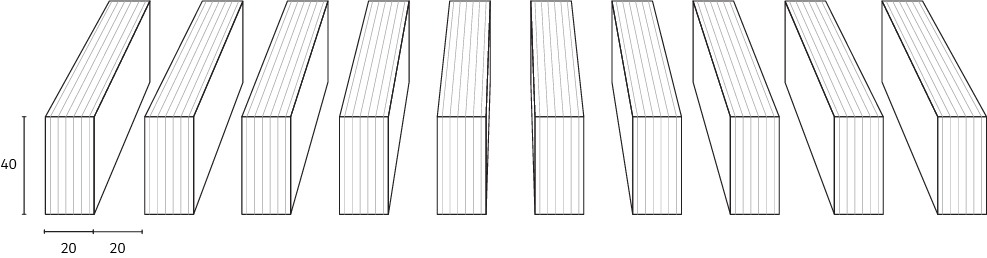

Tall 40

Slat Size: 40mm x 20mm (1-5/8″ x 3/4″)
Spacing: 20mm (3/4″)

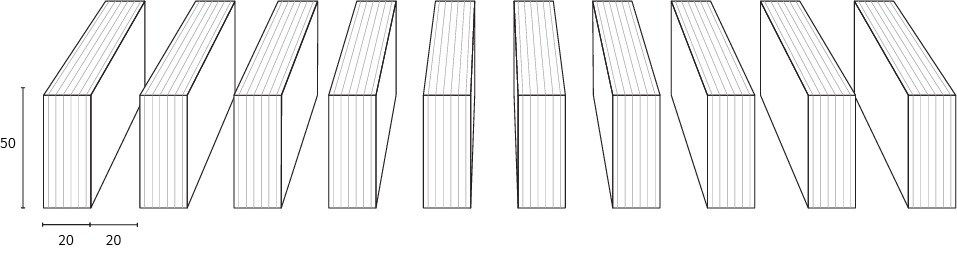

Tall 50

Slat Size: 50mm x 20mm (3/4″ x 2″)
Spacing: 20mm (3/4″)

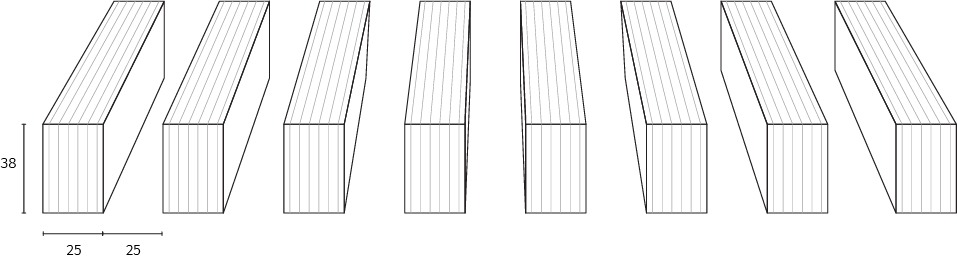

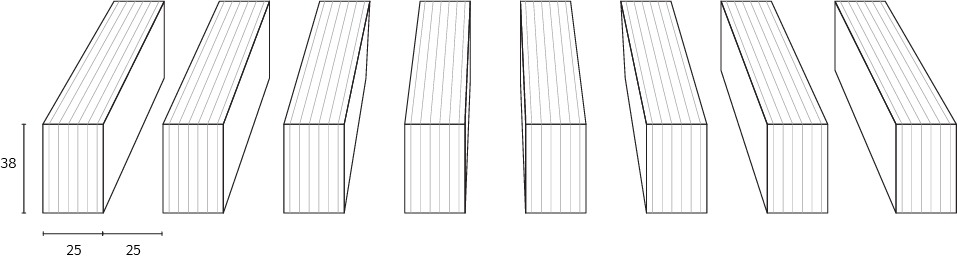

Tall 38

Slat Size: 38mm x 25mm (1-1/2″ x 1″)
Spacing: 25mm (1″)

Select Panel Substrate

Any of our Slat Wall can be used with any Slat Wall Profile (standard or customized).  The decision is typically driven by the aesthetic design and space parameters, but also the indended use or purpose.

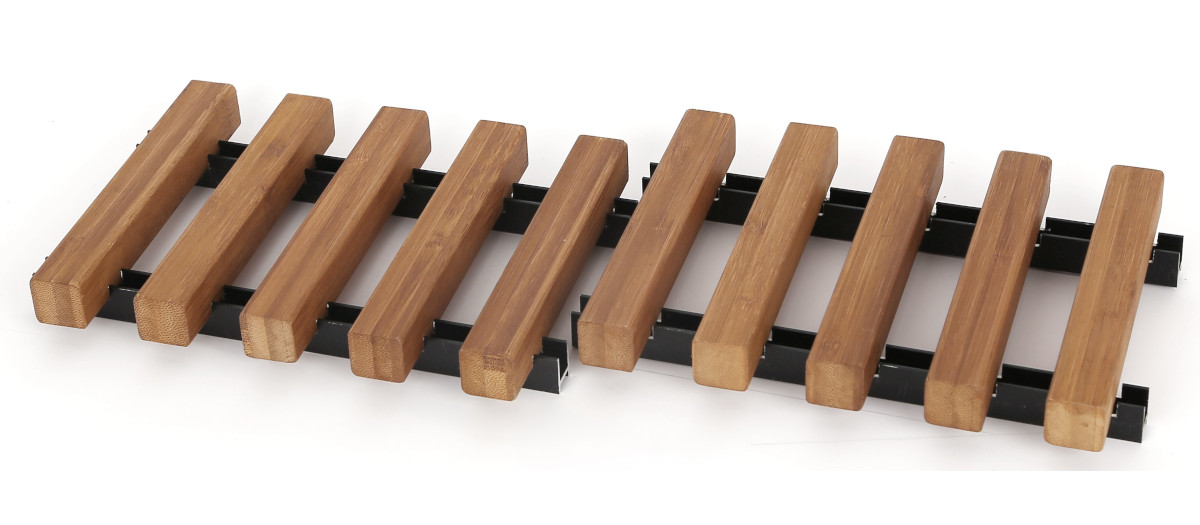

OPEN – 5/8″ aluminum cross beams (adds 3/8″ to over panel thickness).  Default color is black (can be customized).

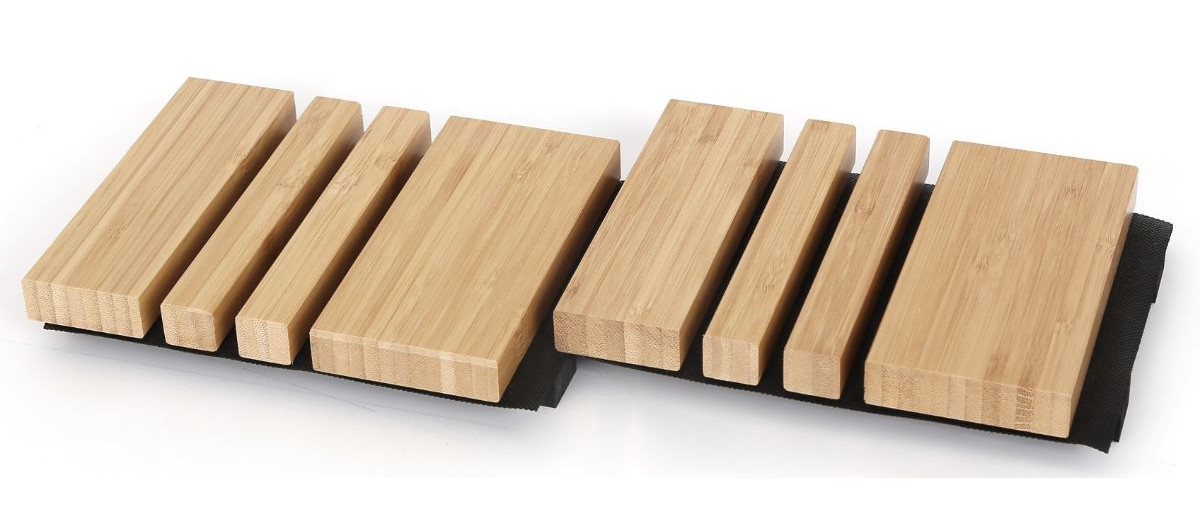

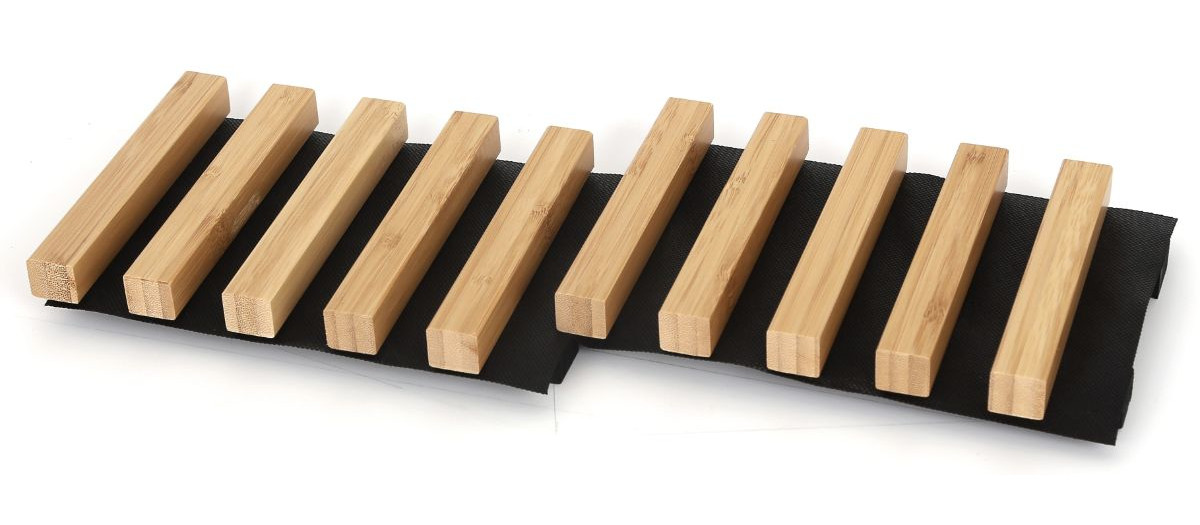

AIR MESH – 1/2″ bamboo cross beam structure with acoustic “Air Mesh” fabric.  Color of “Air Mesh” is black.  NRC “0.75 (with ≥ 8” of air space above panel, assuming 20% “gap” between slats).

FELT – 3/8″ recycled PET felt. Default color is black (can be customized); NRC “0.30 (varies on slat profile).

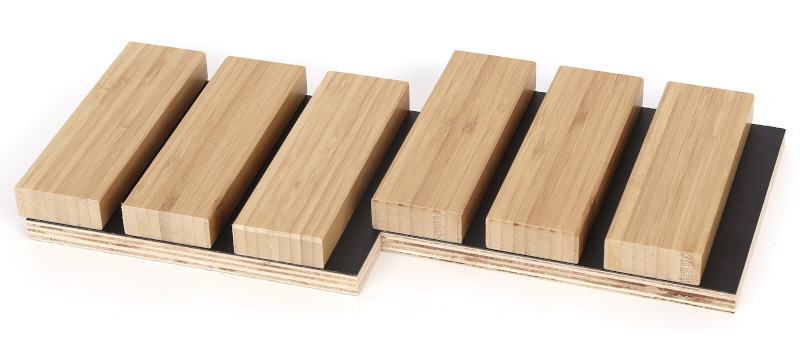

SOLID – 1/2″ bamboo plywood. Default color of plywood is black (can be customized).

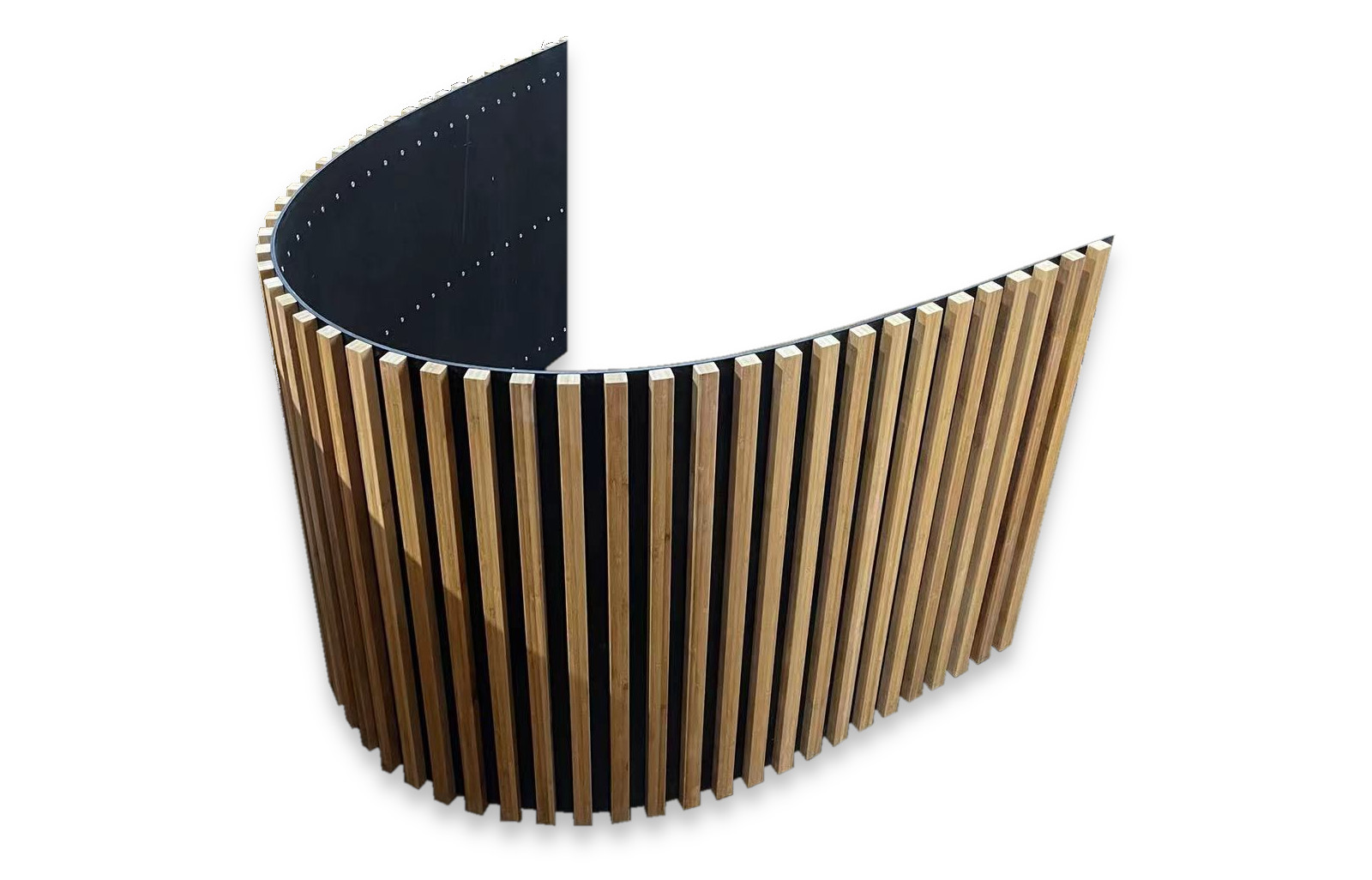

FLEXI – 0.2″ (5mm) flexible plywood for curved surfaces, default color of plywood is black.

Select Slat Color

The OPEN CoreBOO Slat Wall laminated bamboo strips are offered in 9 different colors.

UV Lacquer Options (for interior applications only)

UV White

UV Light

UV Dark2

UV Black

UV Walnut

Rubbed Oil Options (can be used inside or outside)

OIL - White

OIL - Walnut

OIL - Teak

OIL - Natural

OIL - Hazel

OIL - Grey

OIL - Black

Click image to view CoreBOO SLAT Panels pages on brochure.

Ready to Order?

Lead time and shipping costs vary by product.  If you are ready to place an order, CLICK HERE to get a quote for your CoreBOO Panels project.

Installation:

  • Direct Application
  • Hanging

Customizations:

  • Slat size (width and thickness)
  • Color (topical stains available – see: Color Option Chart)
  • “FSC” material available

Environmental Compliance

  • Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
  • E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
  • CARB 2 and LEED-Compliant (FSC material available)

Composition

  • Bamboo – 100% bamboo
  • Substrate(s): Recycled component aluminum

Finish

  • Standard product (Dark/Medium/Light) – UV cured water-based urethan
  • “Stains” – Waco Exterior Oil

Product Documentation
